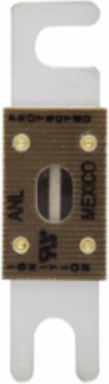

Bussmann ANL-150 ANL Fuse 150A, 3.18 Inch Length, 32 Vac/80 Vdc Voltage Rating
- MPN: ANL-150
- UPC: 051712706148
- PPN: BUS-ANL-150
CAD
$56.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ANL Fuse 150A, 3.18 Inch Length, 32 Vac/80 Vdc Voltage Rating
Features
- Engineered with a precise 150 Amp current rating, this low-voltage limiter provides robust circuit protection tailored for demanding DC power systems. It is perfectly scaled to handle the steady-state current of material handling equipment, solar inverters, and high-draw marine electronics without nuisance tripping.
- Featuring a dual voltage rating of up to 80 VDC (with a 2,700 A interrupting rating) and 32 VAC (with a 6,000 A interrupting rating), this fast-acting fuse ensures immediate isolation of catastrophic overcurrent events. This high breaking capacity stops severe faults instantly, preventing localized damage to expensive battery banks and downstream system wiring.
- Operating as a single-element, non-time-delay circuit limiter, the fuse element reacts instantly to overcurrent surges rather than delaying the clear time. This immediate response is crucial for isolating faults in battery-operated vehicle systems, ensuring that sensitive power distribution electronics are shielded from prolonged thermal stress.
Documentation & Downloads
Specifications
Additional
- Amperage
- 150 A
- Interrupt Rating
- 6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc
- Length
- 3.18 in
- Height
- .88 in
- Connection
- Blade end x blade end
- Type
- Circuit limiting, non-time delay
- Special Features
- Small footprint
Voltage32 Vac, 80 Vdc
Fuse IndicatorNon Indicating
Width.3 in
Weight0.3 lb
MountingStud
ApplicationAviation, fork lifts, marine
ComplianceRoHS Compliant
