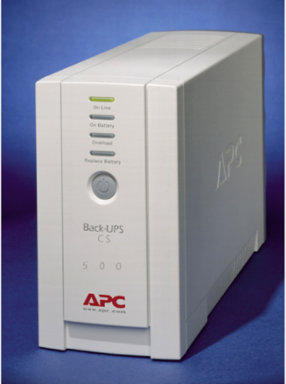

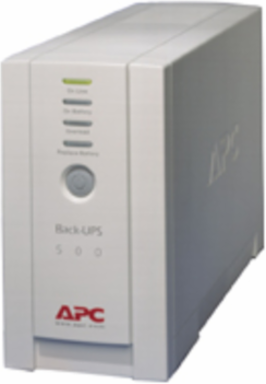

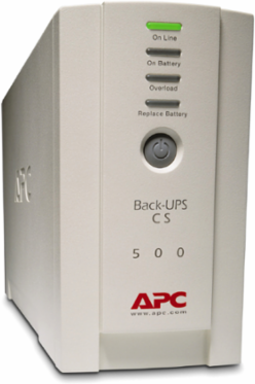

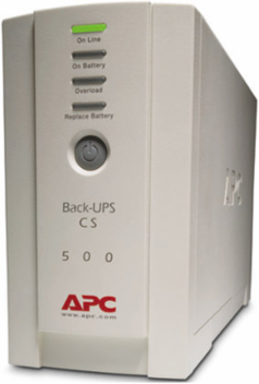

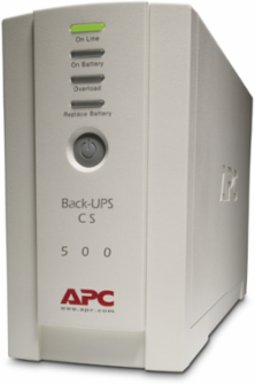

APC BK500 Back-UPS CS 500VA, 120V, 6 Outlet Surge Protector, Beige, 13.82 lb, 11.18 Inch Depth
- MPN: BK500
- UPC: 731304016304
- PPN: APC-BK500
CAD
$282.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Back-UPS CS 500VA, 120V, 6 Outlet Surge Protector, Beige, 13.82 lb, 11.18 Inch Depth
Features
- Serial connection — Use your PC to access additional power protection and management features for your UPS via a serial port.
- USB connection — Use your PC to access additional power protection and management features for your UPS via a USB Port.
- Simple battery replacement — Increases UPS availability by allowing quick, easy battery replacement.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Dataline surge protection — Provides protection of connected equipment from power surges on the data lines.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Lifetime data recovery warranty — Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.

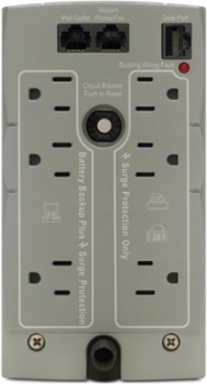

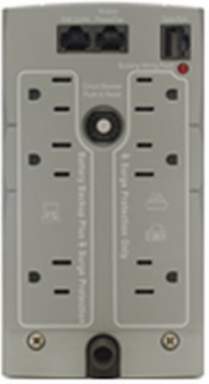

- Transformer-block spaced outlets — Protect equipment with input transformer blocks without blocking access to other receptacles.
- Building Wiring Fault Indicator — This LED informs users of potentially dangerous wiring problems in the wall circuit.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 V
- Maximum Input Current
- 10 A
- Input Connection Type
- NEMA 5-15P
- Cord Length
- 6 ft (1.83 m)
- Battery Voltage
- 12 V
- Typical Recharge Time
- 8 h
- Transfer Time
- 8 ms typical, 12 ms maximum
- Output Frequency
- 50/60 Hz ± 3 Hz synced to mains
- Topology
- Standby
- Width
- 3.58 in (91 mm)
- Weight
- 13.82 lb (6.27 kg)
- Heat Dissipation
- 24 Btu/h
- Storage Temperature Range
- 5-113 °F (-15-45 °C)
- Storage Relative Humidity
- 0-95%
- Storage Altitude
- 0-50000 ft (0-15240 m)
- RoHS
- Compliant with Exemptions
- Mercury Free
- Yes
- Product Orientation
- no preference
Output Power500 VA
Surge Energy Rating480 J
Output Connection Type3 NEMA 5-15R, 3 NEMA 5-15R surge
Battery TypeLead-Acid battery
Battery Capacity7.0 Ah
Battery Life4-6 years
Input Frequency50/60 Hz ± 3 Hz auto-sensing
Waveform TypeStepped approximation to a sinewave
Height6.50 in (165 mm)
Depth11.18 in (284 mm)
Acoustic Level45 dBA
Operating Temperature Range32-104 °F (0-40 °C)
Operating Relative Humidity0-95%
Operating Altitude0-10000 ft
ApprovalscUL Listed, California (CEC) Battery Charger, ENERGY STAR V2.0 (USA), Industry Canada
California Proposition 65Prop 65 Compliant
Mount Positionfront
ColorBeige
