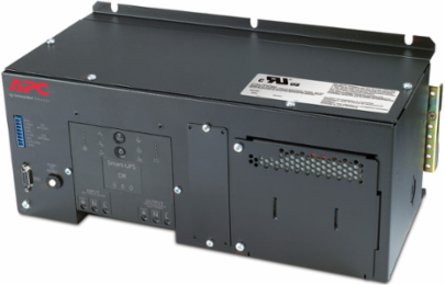

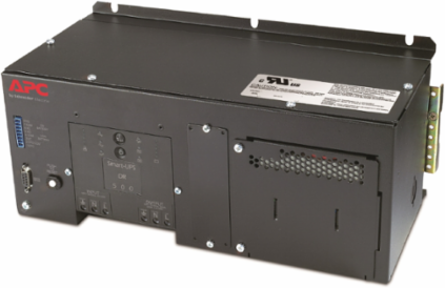

APC SUA500PDR-S DIN Rail Panel Mount UPS 500 VA 120V, 28.35 lb, Energy Efficient, Line Interactive
- MPN: SUA500PDR-S
- UPC: 731304733010
- PPN: APC-SUA500PDR-S
CAD
$988.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
24V DC UPS designed specifically for industrial automation and controls. This 325W UPS comes with hardwire input/output and can be mounted on a DIN Rail or any control panel. It features temperature-compensated battery charging that helps prolong the battery life. It comes with a 2-year standard warranty.
Features
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair MTTR
- 500VA/325W DIN Rail UPS with hardwire input/output.
- Emergency power off switch for immediate disconnect if needed.
- SmartSlot for optional remote management and monitoring of the UPS and connected load.
- 2-year warranty on UPS and internal batteries.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 500 VA |
|---|---|
| Output Voltage | 120 V |
| Topology | Line Interactive |
| Surge Energy Rating | 540 J |
| Dimensions (H x W x D) | 5.83 in x 14.25 in x 6.73 in |
| Typical Recharge Time | 2 h |
| Battery Replaceability | User replaceable |
| Replacement Battery | APCRBC135 |
| RoHS Compliance | Compliant with Exemptions |
| WEEE Compliance | Must be disposed according to EU waste collection mandates |
| Country of Origin | Philippines |
| Customs Number | 8504407012 |
| Output Power | 500 VA |
|---|---|
| Input Voltage | 120 V |
| Waveform Type | Sine wave |
| Weight | 28.35 lb (12.86 kg) |
| Battery Type | Lead-Acid battery |
| Output Connections | Hard Wire 3-wire (H N + E) 1 |
| Emergency Power Off (EPO) | Yes |
| Approvals | UL Recognized |
| Mercury Free | Yes |
| California Proposition 65 | Prop 65 Compliant (contains lead) |
| Product Orientation | No preference |
