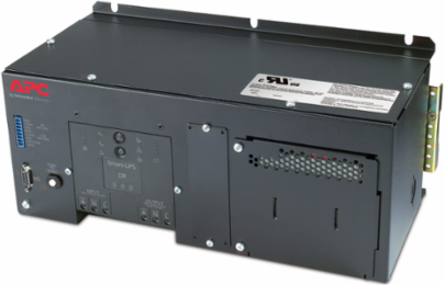

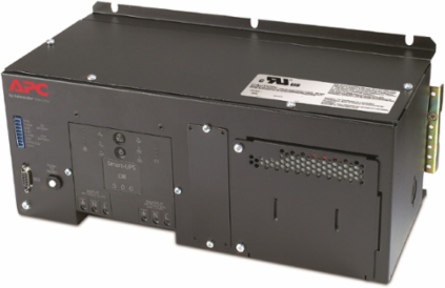

APC SUA500PDR-H Panel Mount UPS 500 VA 120V, 25.31 lb, 6.73 in Depth, Lead-Acid Battery, Line Interactive
- MPN: SUA500PDR-H
- UPC: 731304794493
- PPN: APC-SUA500PDR-H
CAD
$1597.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Panel Mount UPS 500 VA 120V, 25.31 lb, 6.73 in Depth, Lead-Acid Battery, Line Interactive
Features
- User-replaceable batteries — Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 V
- Output Power
- 325 W
- Battery Type
- Lead-Acid battery
- Waveform Type
- Sine wave
- Weight
- 25.31 lb (11.48 kg)
- Output Connections
- Hard Wire 3-wire (H N + E) 1
- Approvals
- UL Recognized
- Mercury Free
- Yes
Power Capacity500 VA
Surge Energy Rating540 J
TopologyLine Interactive
Typical Recharge Time2 h
Dimensions (W x H x D)14.25 in x 5.83 in x 6.73 in (362 mm x 148 mm x 171 mm)
Replacement BatteryAPCRBC136
RoHS ComplianceCompliant with Exemptions
Country of OriginPhilippines
