APC AR8603A APC NetShelter Cable Management, Horizontal Cable Manager, 2U, with Cable Tie, Single Side with Cover, 482 x 89 x 165 mm
APC AR8603A APC NetShelter Cable Management, Horizontal Cable Manager, 2U, with Cable Tie, Single Side with Cover, 482 x 89 x 165 mm
- MPN: AR8603A
- UPC: 731304291527
- PPN: APC-AR8603A
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$305.97/ EA
Description

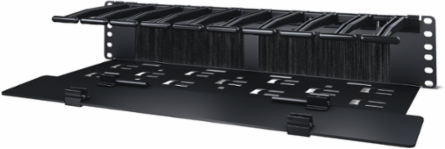

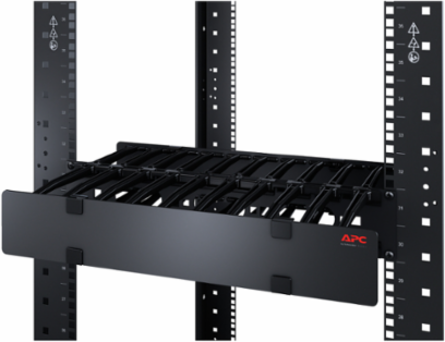

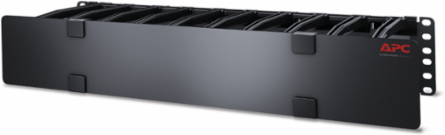

APC NetShelter Cable Management, Horizontal Cable Manager, 2U, with Cable Tie, Single Side with Cover, 482 x 89 x 165 mm
Features
- Covers with snap hinges provide trouble-free access to cables. — Covers with snap hinges provide trouble-free access to cables.
- Smooth plastic fingers provide proper bend radius. — Smooth plastic fingers provide proper bend radius.
- Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel. — Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Horizontal cable routing front-to-back — Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
- Pre-installed brush strips provide air containment and accessibility from the front to the rear of the enclosure. — Pre-installed brush strips provide air containment and accessibility from the front to the rear of the enclosure.
- Double-sided capable — Horizontal cable managers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.
- Horizontal cable manager bottom plate provides cable tie-off features for bundling cable with toolless hook-and-loop cable managers (AR8621). — Horizontal cable manager bottom plate provides cable tie-off features for bundling cable with toolless hook-and-loop cable managers (AR8621).
Specifications
Conformance
- Approvals
- TAA compliance
Sustainability
- Rohs
- Compliant
- TakeBack
- No
- Carbon Footprint
- 5.264209768966344
- Packaging with recycled cardboard
- No
- Sustainable packaging
- No
ReachFree of Substances of Very High Concern above the threshold
WEEEThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Compliance Date2025/07/18 00:00:00
Packaging without single use plasticNo
Weight, Height, Width, Depth
- Weight
- 2.65 lb(US) (1.2 kg)
- Width
- 19.00 in (482.6 mm) in
Height3.50 in (88.9 mm) in
Depth6.50 in (165.1 mm) in
Logistical informations
- Customs number
- 8302423065
Physical
- ProductOrientation
- no preference
- MountPosition
- front, rear
RackHeight2U
Warranty
- Warranty
- Core product: 24 month(s)
