Documentation & Downloads

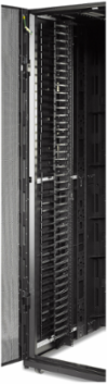

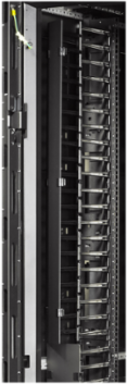

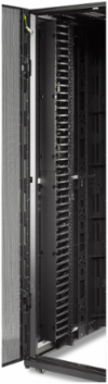

APC AR7585 NetShelter Vertical Cable Manager for 750mm Wide 45U, 3.82 Inch x 6.30 Inch
- MPN: AR7585
- UPC: 731304300984
- PPN: APC-AR7585
CAD
$758.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NetShelter Vertical Cable Manager for 750mm Wide 45U, 3.82 Inch x 6.30 Inch
Features

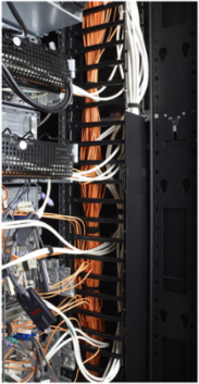

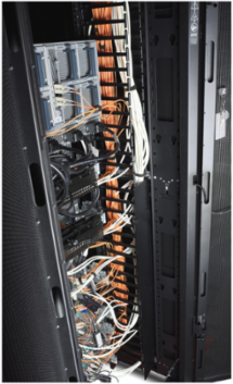

- Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel. — Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Backplates feature multiple holes for toollessly mounting accessories such as cable managers for cable tie-off (AR8621) and airflow management brush strips (AR7714) to allow cable pass-through while restricting airflow through the openings. — Backplates feature multiple holes for toollessly mounting accessories such as cable managers for cable tie-off (AR8621) and airflow management brush strips (AR7714) to allow cable pass-through while restricting airflow through the openings.
- Dedicated cable manager for each enclosure height — Dedicated cable managers for each enclosure height 42U, 45U, and 48U, provide the maximum u-space coverage. Optional covers will match cable manager height to provide full coverage over the entire height of the enclosure.

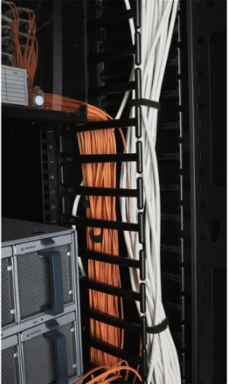

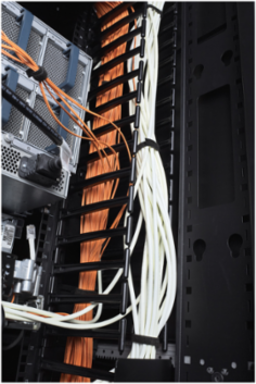

- Secure cabling inside the cable manager with the provided snap hinge cable retainers that open to the left or right for easy access. — Secure cabling inside the cable manager with the provided snap hinge cable retainers that open to the left or right for easy access.
- Optional hinging left or right covers — Covers (not provided) install quickly without tools and include two easy to use latches that allow the cover to open to the left or right. The covers hide the cabling to keep the enclosure space neat for future maintenance and an clean aesthetic.
Documentation & Downloads
Specifications
Additional
- Capacity
- 45U
- Width
- 3.82 in (9.7 cm)
- Weight
- 11.42 lb (5.18 kg)
- Mounting Mode
- Rack-mounted
- Material Compliance
- RoHS Compliant, REACH SVHC Free, Mercury Free, Toxic Heavy Metal Free
- Cable Retainers
- 6 with snap hinges
- Warranty
- 24 months
Height77.99 in (198.1 cm)
Depth6.30 in (16 cm)
Mounting LocationFront, Rear
MountPositionFront, Rear
ApprovalsTAA Compliant
Top Securing BracketIncluded
