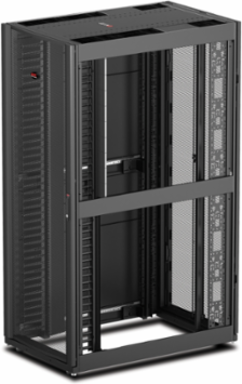

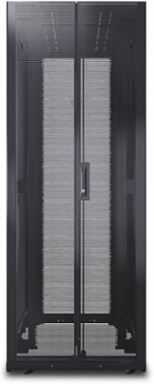

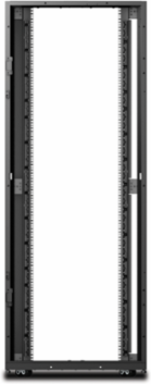

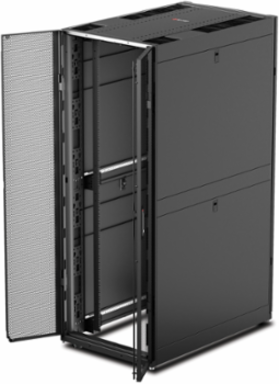

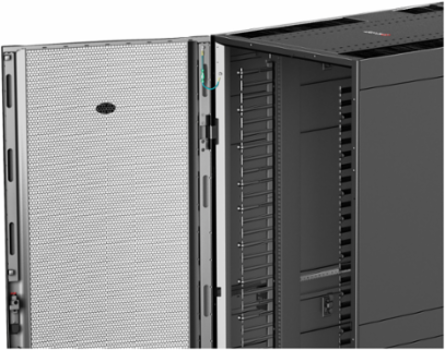

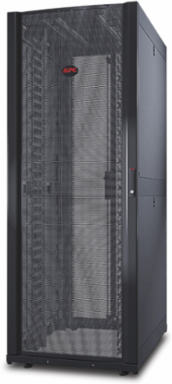

APC AR3140 NetShelter SX 42U Networking Rack Enclosure, 78.39 Inch x 29.53 Inch x 42.13 Inch, 343.81 lb
- MPN: AR3140
- UPC: 731304275572
- PPN: APC-AR3140
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed to easily fit through standard doorways. The Network rack design enables faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors.
Features
- Decrease installation time while supporting the cabling needs of large networking switches.

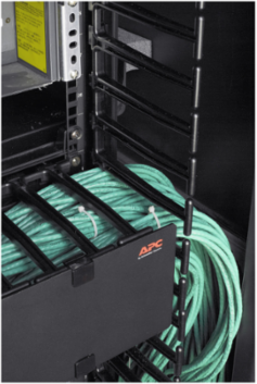

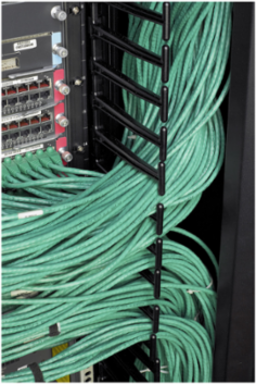

- Smooth plastic fingers provide proper bend radius.

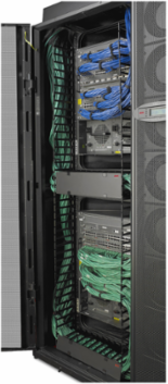

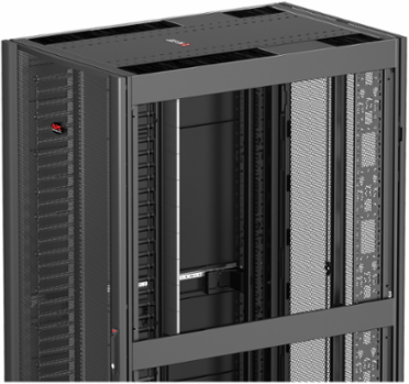

- Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.

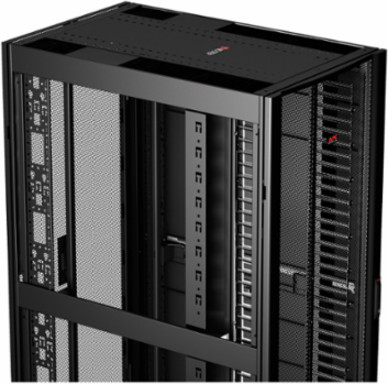

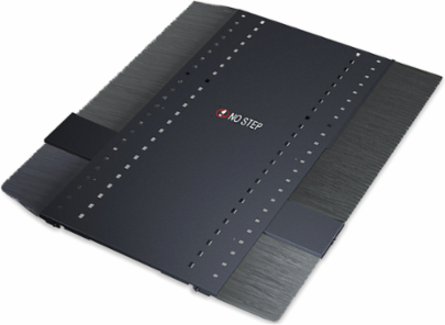

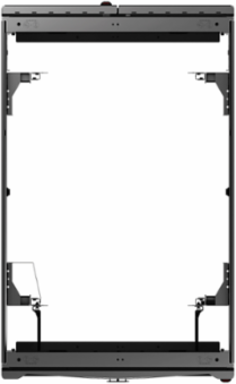

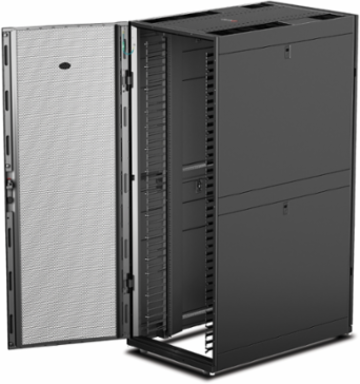

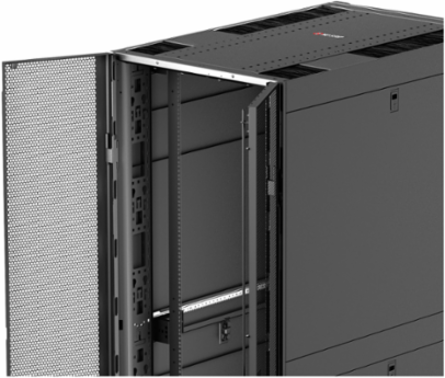

- The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.

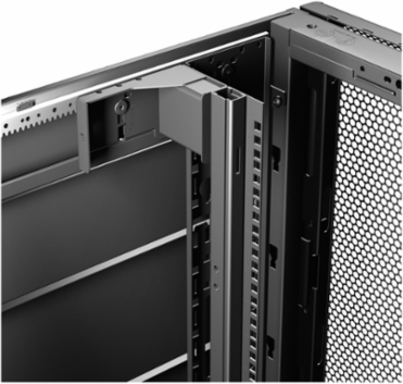

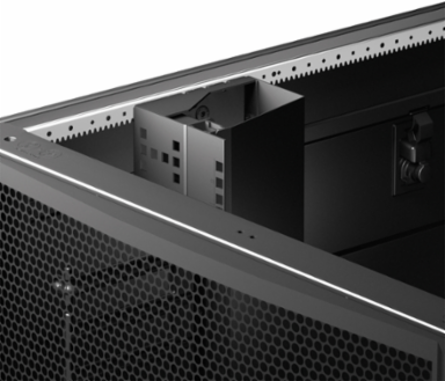

- Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
- Ideal for high density networking or computing
- Designed for faster IT installation, adds or changes
- Promotes proper airflow to improve cooling efficiency
- Full height, 0U accessory channels (x2) for more available Uspace
- Compatible with a wide variety of accessories for organization, airflow, and ease of use
Documentation & Downloads
Specifications
Additional
| Number of Rack Units | 42U |
|---|---|
| Width | 29.53 in (75 cm) |
| Net Weight | 343.81 lb (155.95 kg) |
| Rack Width | 19 in |
| Permanent Permissible Load Static | 3750 lb |
| Standards | UL 2416, UL 60950-1, EIA-310E |
| RoHS | Compliant |
| WEEE | EU compliant disposal required |
| Country of Origin | Philippines |
| Height | 78.39 in (199.1 cm) |
|---|---|
| Depth | 42.13 in (107 cm) |
| Mounting Location | Front, Rear |
| Permanent Permissible Load Dynamic | 2250 lb |
| Material | 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 16 gauge rear door, 18 gauge roof, 18 gauge side panels |
| Compliance | TAA, BAA via COTS |
| REACH | Free of Substances of Very High Concern above the threshold |
| Customs Number | 9403200090 |
