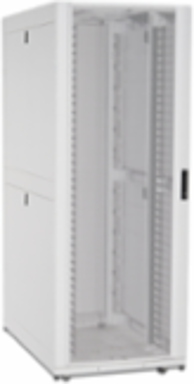

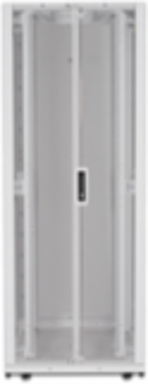

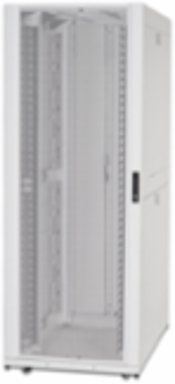

APC AR3140W NetShelter SX 42U Networking Rack Enclosure, 78.39 Inch Height, 29.53 Inch Width, 42.13 Inch Depth
- MPN: AR3140W
- UPC: 731304322290
- PPN: APC-AR3140W
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NetShelter SX 42U Networking Rack Enclosure, 78.39 Inch Height, 29.53 Inch Width, 42.13 Inch Depth
Features
- Integrated high density cable management — Decrease installation time while supporting the cabling needs of large networking switches.
- Cable protection and pass-through — Smooth plastic fingers provide proper bend radius.
- Improved cable access — Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.
- High density cable management — The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.
- Optimized enclosure design for side-to-side airflow — Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
Documentation & Downloads
Specifications
Additional
| Rack Height | 42U |
|---|---|
| Width | 29.53 in (75 cm) |
| Weight | 343.81 lb (155.95 kg) |
| Permanent Permissible Load Dynamic | 2250 lb |
| Minimum Mounting Depth | 11.00 in |
| Material Thickness | 14-16 gauge (rails and doors), 18 gauge (roof and side panels) |
| Compliance | TAA, BAA via COTS |
| EIA Standard | EIA-310E |
| Toxic Heavy Metal Free | Yes |
| Reach | Free of Substances of Very High Concern above the threshold |
| WEEE Compliance | EU disposal compliant |
| Customs Number | 9403200090 |
| Height | 78.39 in (199.1 cm) |
|---|---|
| Depth | 42.13 in (107 cm) |
| Permanent Permissible Load Static | 3750 lb |
| Rack Width | 19 in |
| Maximum Mounting Depth | 32.25 in |
| Mount Position | front, rear |
| UL Standard | UL 2416, UL 60950-1 |
| RoHS | Compliant |
| Mercury Free | Yes |
| Reach Free of SVHC | Yes |
| Warranty | 60 months |
| Color | White |
