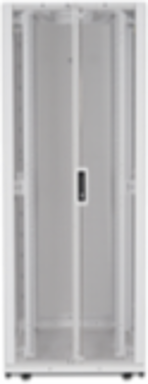

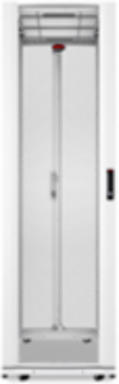

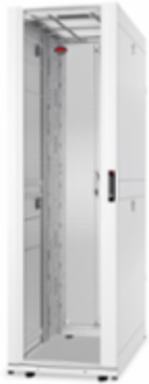

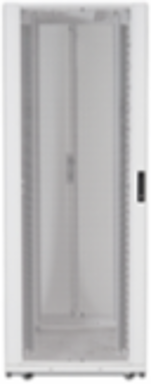

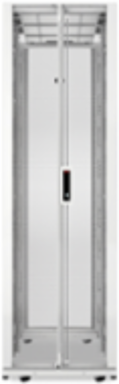

APC AR3340W NetShelter SX Networking Rack Enclosure 42U 1991H x 750W x 1200D mm
- MPN: AR3340W
- UPC: 731304308454
- PPN: APC-AR3340W
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NetShelter SX Networking Rack Enclosure 42U 1991H x 750W x 1200D mm
Features
- Integrated high density cable management — Decrease installation time while supporting the cabling needs of large networking switches.
- Cable protection and pass-through — Smooth plastic fingers provide proper bend radius.
- Improved cable access — Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.
- High density cable management — The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.
- Optimized enclosure design for side-to-side airflow — Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
Documentation & Downloads
Specifications
Additional
| Rack Height | 42U |
|---|---|
| Permanent Permissible Load Static | 3750 lb (1701 kg) |
| Width | 29.53 in (75 cm) |
| Weight | 335.70 lb (152.27 kg) |
| Minimum Mounting Depth | 11.00 in (279 mm) |
| Rail Gauge | 14 gauge EIA mounting rail |
| Post Gauge | 16 gauge |
| Roof Gauge | 18 gauge |
| Compliance | TAA, BAA via COTS |
| RoHS | Compliant |
| Toxic Heavy Metal Free | Yes |
| REACH | Free of Substances of Very High Concern above the threshold |
| Warranty | 5 year repair or replace |
| Permanent Permissible Load Dynamic | 2250 lb (1021 kg) |
|---|---|
| Height | 78.39 in (199.1 cm) |
| Depth | 47.24 in (120 cm) |
| Maximum Mounting Depth | 37.75 in (959 mm) |
| Rack Width | 19 in |
| Front Door Gauge | 16 gauge |
| Rear Door Gauge | 18 gauge |
| Side Panels Gauge | 18 gauge |
| Standards | UL 2416, UL 60950-1, EIA-310D |
| Mercury Free | Yes |
| REACH Free of SVHC | Yes |
| Country of Origin | Thailand |
| Color | White |
