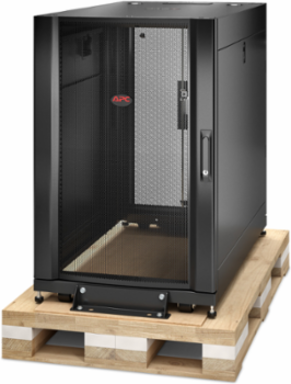

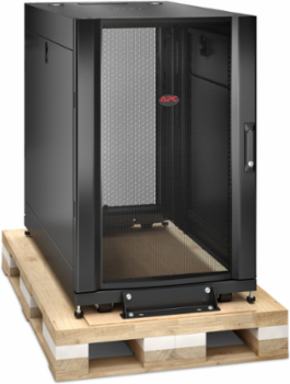

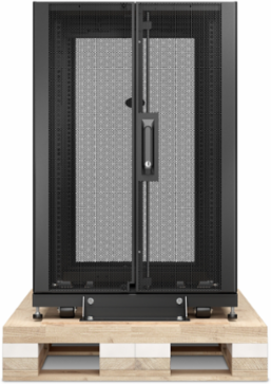

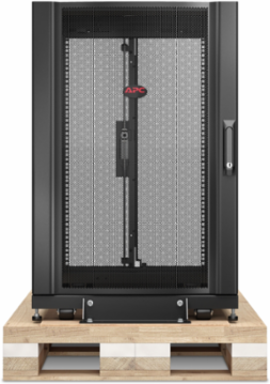

APC AR3106SP NetShelter SX 18U Server Rack Enclosure, 36.42 Inch Height, 19 Inch Width, Black
- MPN: AR3106SP
- UPC: 731304347705
- PPN: APC-AR3106SP
CAD
$3149.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter SX server rack enclosure with the most standard features for speed of deployment and installation. Rack design offers 18RU height with 921 mm max equipment mounting depth, 408 kg (900 lb) static load, and 408 kg (900 lb) dynamic load and two 0U accessory channels. Ready for low to medium density edge computing. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices.
Features
- Compact design fits tight spaces, ideal for small offices and remote deployments
- Vendor-neutral EIA-310 19" rack mounting compatibility with adjustable rails
- Ready for low to medium density edge computing
- Two zero-U accessory channels to maximize equipment space
- Shock packaging allows IT gear to be pre-integrated & shipped
Documentation & Downloads
Specifications
Additional
| Rack Height | 18U |
|---|---|
| Depth | 42.13 in (107 cm) |
| Weight | 159.00 lb (72.12 kg) |
| Rack Width | 19 in |
| Minimum Mounting Depth | 7.52 in (19.1 cm) |
| Compliance | TAA, BAA via COTS |
| RoHS | Compliant |
| WEEE | EU compliant waste disposal |
| Product Orientation | No preference |
| Color | Black |
| Width | 23.62 in (60 cm) |
|---|---|
| Height | 36.42 in (92.5 cm) |
| Permanent Permissible Load | 900 lb static and dynamic (408.2 kg) |
| Maximum Mounting Depth | 36.25 in (92.08 cm) |
| Material | 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 18 gauge rear door, 18 gauge roof, 18 gauge side panels |
| Standards | UL 2416, UL 60950-1, EIA-310E |
| REACH | Free of Substances of Very High Concern above the threshold |
| Warranty | 60 months |
| Customs Number | 9403200090 |
