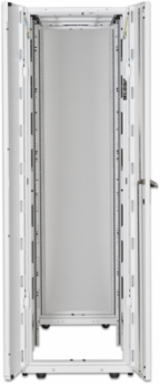

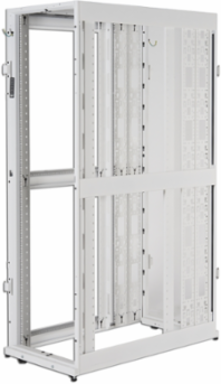

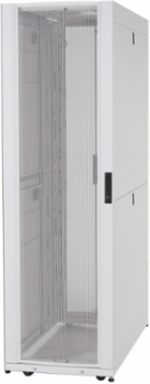

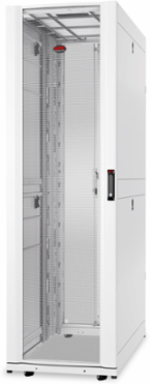

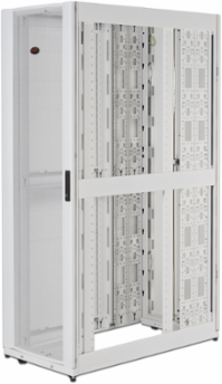

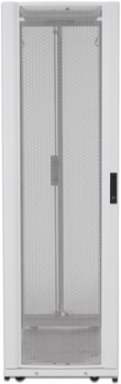

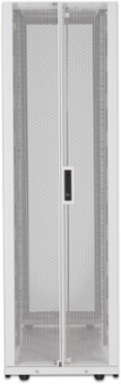

APC AR3305W NetShelter SX Server Rack Enclosure 45U 83.62 Inch x 19 Inch x 47.24 Inch
- MPN: AR3305W
- UPC: 731304322481
- PPN: APC-AR3305W
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a 45U server rack enclosure. It features 14-gauge EIA mounting rails, 16-gauge front door, 16-gauge posts, and 18-gauge rear door and side panels. It includes baying hardware, keyed-alike doors and side panels, leveling feet, pre-installed casters, and side panels. It is designed for medium to high-density environments, providing ample space for cable management and airflow.
Features
- designed for medium to high-density environments
- It is a 45U server rack enclosure
- features 14-gauge EIA mounting rails, 16-gauge front door, 16-gauge posts, and 18-gauge rear door and side panels.
- Includes baying hardware, keyed-alike doors and side panels, leveling feet, pre-installed casters, and side panels.
- providing ample space for cable management and airflow.
Documentation & Downloads
Specifications
Additional
| Rack Unit | 45U |
|---|---|
| Height | 83.62 in |
| Depth | 47.24 in |
| Rack Width | 19 in |
| Minimum Mounting Depth | 7.5 in |
| Compliance | TAA, BAA via COTS |
| RoHS | Compliant |
| Permanent Permissible Load | 2250 lb dynamic, 3750 lb static |
|---|---|
| Width | 23.62 in |
| Weight | 310.85 lb |
| Maximum Mounting Depth | 41.26 in |
| Material Thickness | 14 gauge (mounting rail), 16 gauge (front door, post), 18 gauge (rear door, roof, side panels) |
| Standards | UL 2416, UL 60950-1, EIA-310E |
| REACH | Free of Substances of Very High Concern above the threshold |
