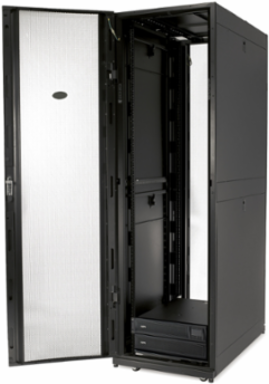

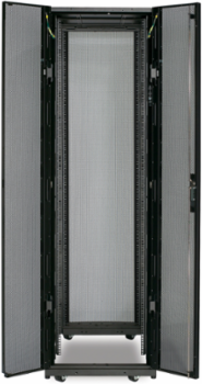

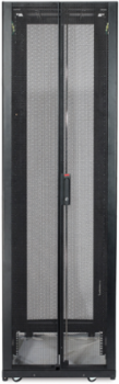

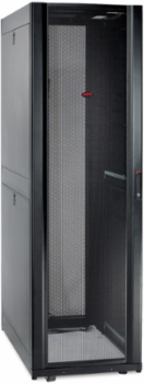

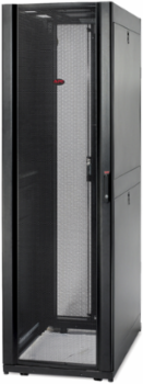

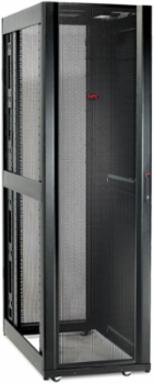

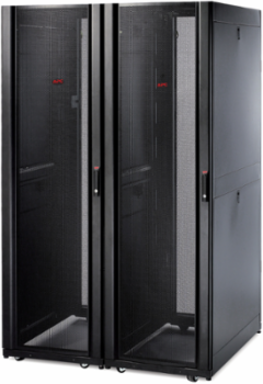

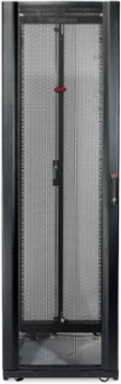

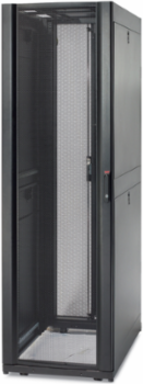

APC AR3107 NetShelter SX Server Rack Enclosure, 48U, 88.90 Inch H x 23.62 Inch W x 42.13 Inch D, 304.74 lb
- MPN: AR3107
- UPC: 731304226383
- PPN: APC-AR3107
CAD
$4305.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
An industry standard rack with the most features for speed of deployment and installation. Ready for high density environments. 48U height allows for an additional 6U of rack mounting space maximizing u-space per rack footprint.
Features
- The enclosure is for low to medium density server and networking applications
- Compact width to optimize data center space
- Tall enclosure with 48U spaces for additional equipment
- An industry standard rack with features for speed of deployment and installation
- Compatible with a wide variety of accessories for organization, airflow, and ease of use
Documentation & Downloads
Specifications
Additional
| Number of Rack Units | 48U |
|---|---|
| Width | 23.62 in (60 cm) |
| Net Weight | 304.74 lb (138.23 kg) |
| Permanent Permissible Load Static | 3750 lb |
| Maximum Mounting Depth | 36.02 in |
| Material Thickness | 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 18 gauge rear door, 18 gauge roof, 18 gauge side panels |
| Standards | UL 2416, UL 60950-1, EIA-310E |
| Reach | Free of Substances of Very High Concern above the threshold |
| Warranty | 60 months |
| Product Orientation | no preference |
| Color | Black |
| Height | 88.90 in (225.8 cm) |
|---|---|
| Depth | 42.13 in (107 cm) |
| Rack Width | 19 in |
| Permanent Permissible Load Dynamic | 2250 lb |
| Minimum Mounting Depth | 7.50 in |
| Compliance | TAA, BAA via COTS |
| RoHS | Compliant |
| WEEE | Disposal per EU waste collection requirements |
| Customs Number | 9403200090 |
| TakeBack | No |
