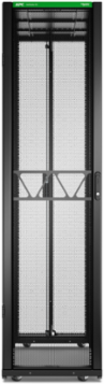

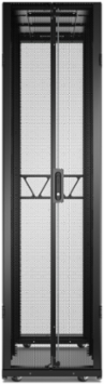

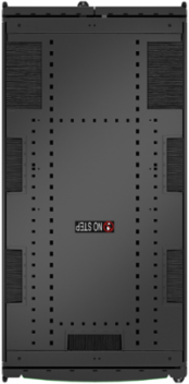

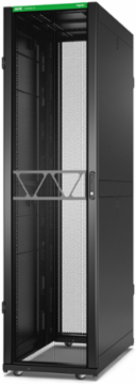

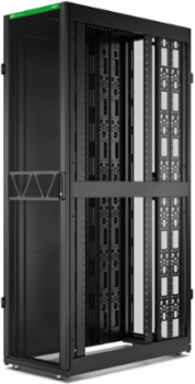

APC AR3307B2 NetShelter SX Server Rack Gen 2, 48U, 88.90 Inch Height, 23.62 Inch Width, 47.24 Inch Depth
- MPN: AR3307B2
- UPC: 731304642299
- PPN: APC-AR3307B2
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Introducing the redesigned APC NetShelter SX rack enclosure - trusted, versatile, and built for demanding IT environments. With larger load capacities and more space for equipment, it enables higher-density computing. Choose from standard, wide, extra wide, and large-depth options. The modern look is perfect for colocation and customer-facing businesses. Simplify workflows with easy access to cabling and equipment, and optimize airflow and cable management with our wide range of APC accessories. The 270° (180° bayed) opening doors keep aisles clear, while 80% door perforation improves airflow for high-powered servers. Built with all-steel construction, it lasts for years and can be used for various applications. It ships in sturdy, recyclable packaging.
Features
- Ideal for AI, high density server and networking applications
- 2nd Gen model with higher load capacity and better airflow
- Complete environmental data for sustainability initiatives
- Ample space, organization, security and convenience features
- Extensive list of compatible products and accessories
Documentation & Downloads
Specifications
Additional
| Rack Units | 48U |
|---|---|
| Depth | 47.24 in (120 cm) |
| Rack Width | 19 in |
| Load Capacity Dynamic | 2250 lb |
| Maximum Mounting Depth | 41.26 in |
| Material | 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 18 gauge rear door, 18 gauge roof, 18 gauge side panels |
| Country of Origin | China |
| Height | 88.90 in (225.8 cm) |
|---|---|
| Width | 23.62 in (60 cm) |
| Weight | 322.32 lb (146.2 kg) |
| Load Capacity Static | 4000 lb |
| Minimum Mounting Depth | 7.50 in |
| Compliance | TAA, BAA via COTS, UL 2416, EIA-310E, RoHS Compliant, Reach Free of SVHC |
| Warranty | 60 months |
