APC AP8861 NetShelter Rack PDU 0U, 5.7kW, 208V 3-Phase, 20A, 36 C13, 6 C19, 2 NEMA 5-20R Outlets
- MPN: AP8861
- UPC: 731304277057
- PPN: APC-AP8861
CAD
$1611.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NetShelter Rack PDU 0U, 5.7kW, 208V 3-Phase, 20A, 36 C13, 6 C19, 2 NEMA 5-20R Outlets
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 5.7 kW
- Line Rated Current
- 16 A
- Output Voltage
- 120 V, 208 V
- Outlet Type and Quantity
- 36 IEC 60320 C13, 6 IEC 60320 C19, 2 NEMA 5-20R
- Cord Length
- 6 ft (1.83 m)
- Mounting Position
- Side, Vertical
- Width
- 2.20 in (5.6 cm)
- Weight
- 13.98 lb (6.34 kg)
- Mercury Free
- Yes
- RoHS
- Compliant with Exemptions
- Storage Temperature Range
- -13–149 °F (-25–65 °C)
- Storage Humidity Range
- 5–95 %
- Storage Altitude
- 0–50,000 ft (0–15,240 m)
Input Voltage208 V 3 phase
Max Line Current20 A
Number of Outlets44

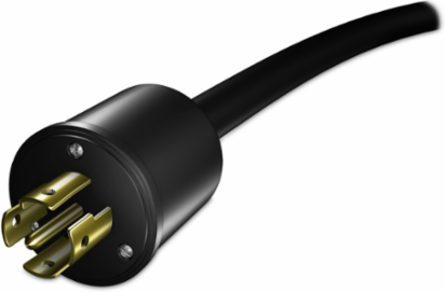

Input Plug TypeNEMA L21-20P
Rack Units0U
Height70.51 in (179.1 cm)
Depth1.73 in (4.4 cm)
Lead FreeYes
StandardsCSA C22.2 No. 60950, UL 60950-1
Operating Temperature Range23–140 °F (-5–60 °C)
Operating Humidity Range5–95 %
Operating Altitude0–10,000 ft
Country of OriginIndia
