APC AP8881 NetShelter Rack PDU 0U 11kW 230V 16A 36 C13 6 C19 Outlets

MPN: AP8881
UPC: 731304277071
PPN: APC-AP8881

$2776.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

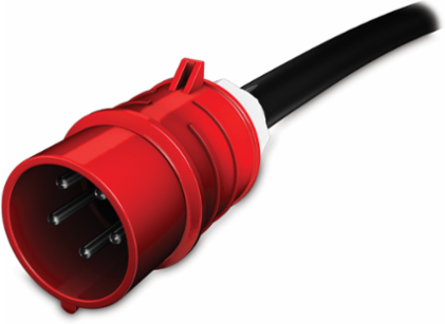

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates

Features

Ideal for colocation, large or remote data center operators
Plan capacity & balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
Enables improved energy efficiency and scope 1 and 3 emissions tracking
Easily monitor and manage through EcoStruxure IT and other platforms
1-Year Secure Network Management Card subscription included
Stay on top of potential circuit overloads with user-defined alarms

Documentation & Downloads

Specifications

Additional

Power	11 kW
Amperage	16 A
Input Frequency	50/60 Hz
Rack Units	0U
Width	2.20 in (5.6 cm)
Cord Length	6 ft (1.83 m)
Mounting Location	side, vertical
PDU Type	Metered
Operating Temperature	23 to 140 F (-5 to 60 C)
Operating Humidity	5 to 95 %
Operating Altitude	0 to 10000 ft
Material Compliance	Lead Free, Mercury Free, RoHS Compliant
Certifications	VDE, CSA C22.2 No. 60950, IEC 60950, UL 60950-1
Warranty	24 months

Voltage	230 V
Input Voltage	400 V 3 phase
Load Capacity	11000 VA
Height	70.51 in (179.1 cm)
Depth	1.73 in (4.4 cm)
Weight	14.07 lb (6.38 kg)
Input Connection Type	IEC 60309 16A 3P+N+PE, IEC 60309 20A 3P+N+PE
Outlet Quantity	36 C13, 6 C19
Storage Temperature	-13 to 149 F (-25 to 65 C)
Storage Humidity	5 to 95 %
Storage Altitude	0 to 50000 ft (0 to 15240 m)
WEEE Compliance	EU Waste Collection Compliant
Country of Origin	India
