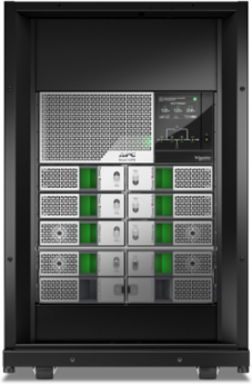

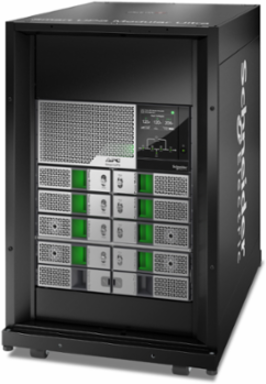

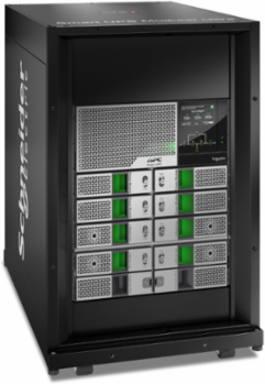

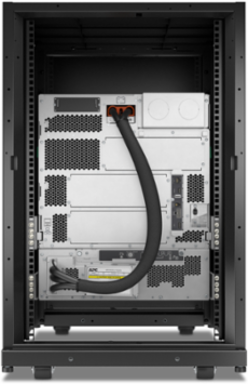

APC SRYL20K20XLT18 APC Smart-UPS Modular Ultra On-Line, 20kW scalable to 20kW N+1, Lithium-ion, Tower 18U, 208/240V, Network Management, W/ Battery chassis
- MPN: SRYL20K20XLT18
- UPC: 731304622024
- PPN: APC-SRYL20K20XLT18
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS Modular Ultra Tower provides 2.5x more power protection and available U-space in a standalone UPS for a flexible installation to accommodate power needs where necessary. Scale up to 20kW of single-phase power protection with a smaller, lighter and more powerful modular UPS to free up enclosure space for more equipment. Designed for local edge environments, the Smart-UPS Modular Ultra rackmount and tower solutions provide consistent and reliable connectivity at the most critical moments.
Features
- 18U Tower UPS chassis, scalable to 20kW with 4 (5kW) Power and 4 Battery Modules
- Modular UPS up to 50% smaller for more power and usable rack space in the same footprint
- Preconfigured design with liveswap capability
- The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction
- 1-Year Secure Network Management Card subscription included
Documentation & Downloads
Specifications
Conformance
| Rohs | Compliant By Exemption |
|---|---|
| OptimizedEnergyEfficiency | Energy efficient product |
| Scip Number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Reach | Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Reach Compliance Date | 2026-02-01 |
| Removable Battery | User replaceable |
Sustainability
| TakeBack | Yes |
|---|---|
| Recycled metal content in percentage | 0 % |
| Packaging without single use plastic | No |
| Carbon Footprint | 46945.3409347146 |
|---|---|
| Packaging with recycled cardboard | Yes |
| Product contributes saved avoided emissions | Yes |
Weight, Height, Width, Depth
| Height | 37.09 in (942 mm) |
|---|---|
| Depth | 35.43 in (900 mm) |
| Width | 23.62 in (600 mm) |
|---|---|
| Weight | 533.28 lb(US) (242.4 kg) |
Output
| OutputPowerCapacity | 20000 VA |
|---|---|
| Topology | On-Line |
| NominalOutputVoltage | 120 V AC 1 phase, 208 V AC 1 phase, 240 V AC 1 phase |
|---|---|
| Waveformtype | Sine wave |
Warranty
| Warranty | Core product: 60 month(s) |
|---|
