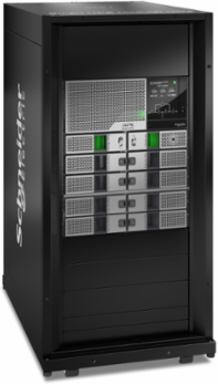

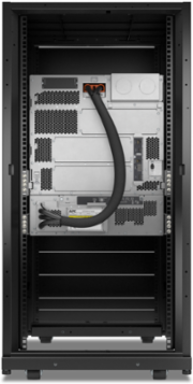

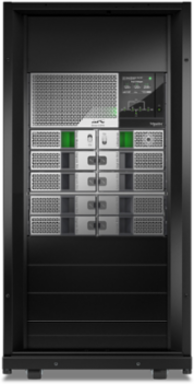

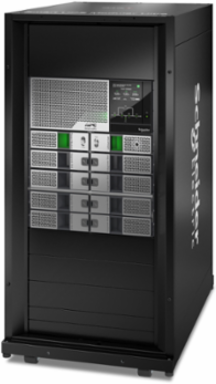

APC SRYL5K20XLT24 APC Smart-UPS Modular Ultra On-Line, 5kW scalable to 20kW N+1, Lithium-ion, Tower 24U, 208/240V, Network Management, W/ Battery chassis

MPN: SRYL5K20XLT24
UPC: 731304622062
PPN: APC-SRYL5K20XLT24

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Smart-UPS Modular Ultra Tower provides 2.5x more power protection and available U-space in a standalone UPS for a flexible installation to accommodate power needs where necessary. Scale up to 20kW of single-phase power protection with a smaller, lighter and more powerful modular UPS to free up enclosure space for more equipment. Designed for local edge environments, the Smart-UPS Modular Ultra rackmount and tower solutions provide consistent and reliable connectivity at the most critical moments.

Features

24U Tower UPS chassis, scalable to 20kW with 1 (5kW) Power and 1 Battery Modules
Modular UPS up to 50% smaller for more power and usable rack space in the same footprint
Preconfigured design with liveswap capability
1-Year Secure Network Management Card subscription included
EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime
The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction

Documentation & Downloads

Specifications

Conformance

Rohs	Compliant By Exemption
OptimizedEnergyEfficiency	Energy efficient product
Scip Number	31346aed-552c-4a16-81d9-e683a383b6da

Reach	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Date	2026-02-01
Removable Battery	User replaceable

Sustainability

TakeBack	Yes
Recycled metal content in percentage	0 %
Packaging without single use plastic	No

Carbon Footprint	23393.378618384017
Packaging with recycled cardboard	Yes
Product contributes saved avoided emissions	No

Weight, Height, Width, Depth

Height	47.17 in (1198 mm)
Depth	35.43 in (900 mm)

Width	23.62 in (600 mm)
Weight	429.44 lb(US) (195.2 kg)

Output

OutputPowerCapacity	5000 VA
Topology	On-Line

NominalOutputVoltage	120 V AC 1 phase, 208 V AC 1 phase, 240 V AC 1 phase
Waveformtype	Sine wave

Warranty

Warranty	Core product: 60 month(s)

APC Smart-UPS Modular Ultra On-Line, 5kW scalable to 20kW N+1, Lithium-ion, Tower 24U, 208/240V, Network Management, W/ Battery chassis
