nVent Hoffman APCDSS6 Stainless Steel Pressure Compensation, 1.22x2.28x2.28, Brushed, SS316
- MPN: APCDSS6
- UPC: 783510164577
- PPN: HOF-APCDSS6
- UNSPSC: 40101604
CAD
$575.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

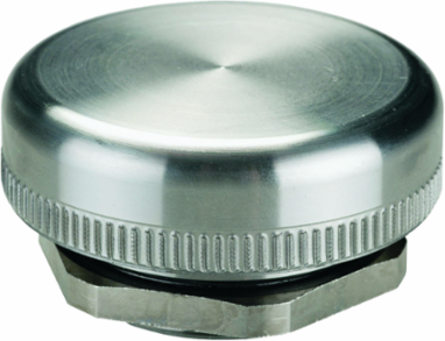

Pressure compensation devices provide IP66 protection in applications requiring pressure equalization. This Stainless Steel Pressure Compensation, APCDSS6 item measures 1.22x2.28x2.28 with a material of SS316 finish Brushed.
Features
- Air permeability = 42 cubic feet/hour (1,200 liters/hour) at a pressure difference of min. 70 mbar
- Easy installation: drill one 1.60-in. (41-mm) diameter hole
- Sealing gasket (Nitrile Buna-N Rubber)
- Semipermeable membrane inside the plug filters moisture and dust
- Mounting thread M40 with union nut
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Depth (D) | 58 |
| Finish | Brushed #3 |
| Height (H) | 31 |
| Size | 1.22 x 1 in |
| Width (W) | 58 |
|---|---|
| Material | Stainless Steel 316L |
| Diameter | 58 |
| Weight | 0.4 |
| Housing Material | Stainless Steel |
