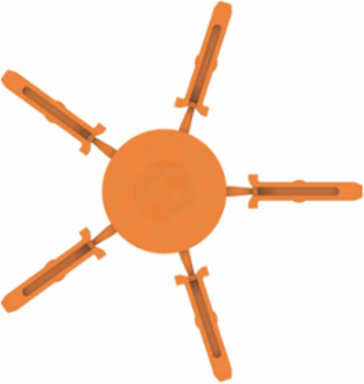

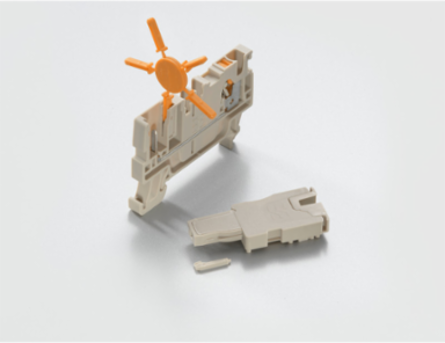

Weidmuller 1514490000 APGCE Push-In Terminal Block, 0.433 Inch Height, 0.089 Inch Depth, Orange
- MPN: 1514490000
- PPN: WDM-1514490000
CAD
$0.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APGCE Push-In Terminal Block, 0.433 Inch Height, 0.089 Inch Depth, Orange
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 3.3 mm |
|---|---|
| Height | 11 mm |
| Depth | 2.25 mm |
| Net weight | 0.113 g |
| Width (inches) | 0.13 inch |
|---|---|
| Height (inches) | 0.433 inch |
| Depth (inches) | 0.089 inch |
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | orange |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
