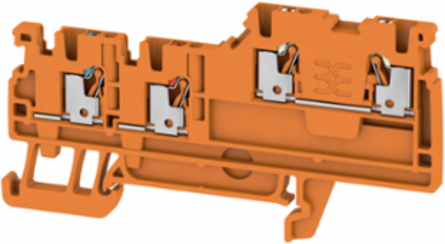

Weidmuller 2579610000 PUSH IN Terminal Block - 1.5 mm2, 250 V, 13.5 A, Orange
- MPN: 2579610000
- PPN: WDM-2579610000
CAD
$5.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PUSH IN, 1.5 mm², 250 V, 13.5 A, orange
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, IECEXTUR, TUEVNATEX
Dimensions And Weights
- Width
- 3.5 mm
- Height
- 80 mm
- Depth
- 42 mm
- Depth including DIN rail
- 43 mm
Width (inches)0.138 inch
Height (inches)3.15 inch
Depth (inches)1.654 inch
Net weight6.54 g
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourorange
Classifications
- ETIM 6.0
- EC000900
- eClass 9.0
- 27-14-11-28
- eClass 10.0
- 27-14-11-28
ETIM 7.0EC000900
eClass 9.127-14-11-28
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated cross-section
- 1.5 mm²
- Rated current
- 13.5 A
- Volume resistance according to IEC 60947-7-x
- 1.83 mΩ
Rated voltage250 V
Current at maximum wires13.5 A
Power loss in accordance with IEC 60947-7-x0.56 W
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- TUEV17ATEX8031U
- Max. voltage (ATEX)
- 220 V
- Wire cross section max. (ATEX)
- 1.5 mm²
- Current (IECEX)
- 12 A
Certificate No. (IECEX)IECEXTUR17.0016U
Current (ATEX)12 A
Max. voltage (IECEX)220 V
Wire cross section max. (IECEX)1.5 mm²
Conductors For Clamping (Rated Connection)
- Blade size
- 0.4 x 2.0 mm
- Clamping range, min.
- 0.14 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A1
- Stripping length
- 8 mm
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 1.5 mm²
Clamping range, max.1.5 mm²
Connection cross-section, stranded, max.1.5 mm²
Connection directiontop
Number of connections4
Type of connectionPUSH IN
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
