Brady 101518 Arc Flash Labels - Self-Sticking Polyester, 2" H x 4" W x 0.006" D, Roll of 100 Labels, Black/Red on White
Brady 101518 Arc Flash Labels - Self-Sticking Polyester, 2" H x 4" W x 0.006" D, Roll of 100 Labels, Black/Red on White
- MPN: 101518
- UPC: 754473008963
- PPN: BRD-101518
- UNSPSC: 55122003
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$175.80/ EA
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
- Cold temperature adhesive allows the signage to be applied at 0°F (-18°C)
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Black/Red on White
- Enables Industry Compliance
- NEC; NFPA 70E; OSHA 1910.331-335
- Image or Text
- Text Only
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Illuminated
- Reflective Type
- Non-Reflective
- Text Legend

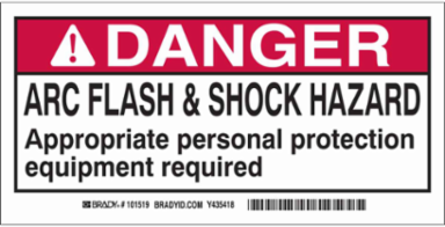

- ARC FLASH & SHOCK HAZARD APPROPRIATE PERSONAL PROTECTION EQUIPMENT REQUIRED
- Write-On Area
- No
- Brady Material Number
- B-302
- Indoor or Outdoor Use
- Outdoor Use
- Laminated
- Laminated
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Dimensions
- 2 in H x 4 in W
- Dimensions 2
- 2 in H x 4 in W
- Height (mm/cm/m)
- 50.8 mm
- Maximum Service Temperature °F
- 230 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 2 in x 4 in
- Thickness (mm/cm/m)
- 0.254 mm
- Width (mm/cm/m)
- 101.6 mm
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesCold; High Surface Energy
HeaderDANGER
LanguageEnglish
Number of Printed Sides1
Printer and Label ApplicationsGeneral Identification; Safety
Quantity per Roll100
ShapeRectangle
Write-OnNo
Adhesive TypePermanent Acrylic
IlluminationNot Illuminated
Label PropertiesPermanent Adhesive Labels
MaterialPolyester with Polyester Overlaminate
SAP B-NumberB-302
Dimensions (Metric)50.8 mm H
Height (in/ft/yd)2 in
Maximum Service Temperature °C110 °C
Minimum Application Temperature °C-18 °C
Minimum Service Temperature °C-40 °C
Sign Size2 in H x 4 in W
Thickness (in/ft/yd)0.01 in
Width (in/ft/yd)4 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Unavailable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
