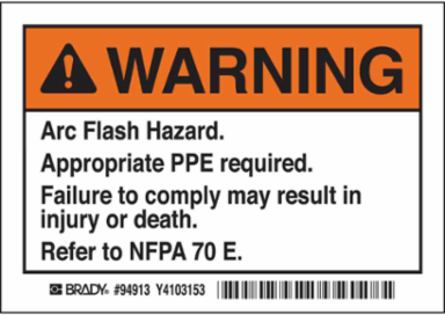

Brady EL-1 Arc Flash Labels - Self-Sticking Polyester, 3.5" H x 5" W x 0.006" D, Pack of 5 Labels, Black/Orange on White
Brady EL-1 Arc Flash Labels - Self-Sticking Polyester, 3.5" H x 5" W x 0.006" D, Pack of 5 Labels, Black/Orange on White
- MPN: EL-1
- UPC: 754473949136
- PPN: BRD-EL-1
- UNSPSC: 55122003
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$25.98/ EA
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
- Cold temperature adhesive allows the signage to be applied at 0°F (-18°C)
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Black/Orange on White
- Enables Industry Compliance
- NEC; NFPA 70E; OSHA 1910.331-335
- Image or Text
- Image & Text
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Rated
- Shape
- Rectangle
- Write-On
- No
- Adhesive Type
- Permanent Acrylic
- Illumination
- Not Illuminated
- Label Properties
- Permanent Adhesive Labels
- Material
- Polyester with Polyester Overlaminate
- SAP B-Number
- B-302
- Dimensions (Metric)
- 88.9 mm H
- Height (in/ft/yd)
- 3.5 in
- Maximum Service Temperature °C
- 110 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 3.5 in H x 5 in W
- Thickness (in/ft/yd)
- 0.01 in
- Width (in/ft/yd)
- 5 in
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesCold; High Surface Energy
HeaderWARNING
LanguageEnglish
Number of Printed Sides1
Printer and Label ApplicationsGeneral Identification; Safety
Reflective TypeNon-Reflective
Text LegendARC FLASH HAZARD. APPROPRIATE PPE REQUIRED. FAILURE TO COMPLY CAN RESULT IN DEATH OR INJURY. REFER TO NFPA 70E.
Write-On AreaNo
Brady Material NumberB-302
Indoor or Outdoor UseOutdoor Use
LaminatedLaminated
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Dimensions3.5 in H x 5 in W
Dimensions 23.5 in H x 5 in W
Height (mm/cm/m)88.9 mm
Maximum Service Temperature °F230 °F
Minimum Application Temperature °F0 °F
Minimum Service Temperature °F-40 °F
Sign Size-General3.5 in x 5 in
Thickness (mm/cm/m)0.254 mm
Width (mm/cm/m)127 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
Contains CA PROP 65 SubstanceNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
