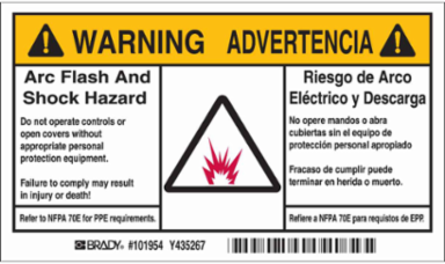

Brady 101954 Arc Flash Labels - 3.5 in x 6 in, Self-Sticking Polyester, Black/Orange on White, Bilingual
- MPN: 101954
- UPC: 754473008932
- PPN: BRD-101954
- UNSPSC: 55122003
CAD
$24.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
- Cold temperature adhesive allows the signage to be applied at 0°F (-18°C)
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Color
- Black/Orange on White
- Enables Industry Compliance
- NEC; NFPA 70E; OSHA 1910.331-335
- Image or Text
- Image & Text
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Illuminated
- Shape
- Rectangle
- Write-On
- No
- Adhesive Type
- Permanent Acrylic
- Illumination
- Not Illuminated
- Label Properties
- Permanent Adhesive Labels
- Material
- Polyester with Polyester Overlaminate
- SAP B-Number
- B-302
- Dimensions (Metric)
- 88.90 mm H
- Height (in/ft/yd)
- 3.5 in
- Maximum Service Temperature °C
- 110 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 3.5 in H x 6 in W
- Thickness (in/ft/yd)
- 0.01 in
- Width (in/ft/yd)
- 6 in
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesCold; High Surface Energy
HeaderWARNING/ADVERTENCIA
LanguageEnglish; Spanish
Number of Printed Sides1
Printer and Label ApplicationsGeneral Identification; Safety
Reflective TypeNon-Reflective
Text LegendARC FLASH HAZARD DO NOT OPERATE CONTROLS OR OPEN COVERS WITHOUT APPROPRIATE PERSONAL PROTECTION EQUIPMENT. FAILURE TO COMPLY MAY RESULT IN INJURY OR DEATH! RIESGO DE ARCO ELECTRICO NO OPERA MANDOS O ABRA CUBIERTAS SIN EL EQUIPO DE PROTECCION PERSONAL APROPIADO. FRACASO DE CUMPLIR PUEDE TERMINAR EN HERIDA O MUERTO.
Write-On AreaNo
Brady Material NumberB-302
Indoor or Outdoor UseOutdoor Use
LaminatedLaminated
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Dimensions3.5 in H x 6 in W
Dimensions 23.5 in H x 6 in W
Height (mm/cm/m)88.90 mm
Maximum Service Temperature °F230 °F
Minimum Application Temperature °F0 °F
Minimum Service Temperature °F-40 °F
Sign Size-General3.5 in x 6 in
Thickness (mm/cm/m)0.254 mm
Width (mm/cm/m)152.4 mm
Regulatory Information
- California Prop 65
- Due to inconclusive data, this product may not ship to California at this time
- EU RoHS Compliant
- Yes
EU RoHS CompliancePass 2011/65/EU
