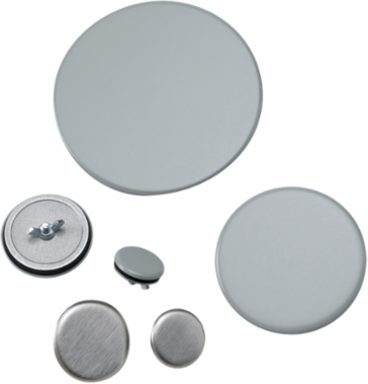

nVent AS075 Hol-Sealers Hole Seal, 1.56 Inch Diameter, Gray, Mild Steel
- MPN: AS075
- UPC: 783510597108
- PPN: HOF-AS075
- UNSPSC: 39121321
CAD
$19.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Seals pushbutton holes, conduit openings and knockout openings against dust, dirt, oil and water. This Hol-Sealers Hole Seal, AS075 item measures 1.56-inch Diameter with a material of Mild Steel colored Gray.
Features
- Available in multiple colors and sizes
- Oil-resistant gasket provided
- Steel model has plated stud (10-32x5/8) and wing nut
- Stainless steel model has 300 series stainless steel stud (10-24x5/8) and wing nut
Documentation & Downloads
Specifications
Additional
| Hol-Sealer Diameter | 1.56 in |
|---|---|
| Thickness | 1.5 in, 16 gauge |
| Finish | Powder Coated Gray |
| Color | Gray, ANSI 61 |
| Stud Size | 10-32 x 5/8 |
| Product Family | Hol-Sealers |
| Works With | NEMA & IEC |
| Material | Steel, Mild Steel |
|---|---|
| Weight | 0.08 lb |
| Compliance | UL 508A Component Recognized; Type 3R, 4, 12, 13; CSA File No. 42186; NEMA/EEMAC Type 3R, 4, 12, 13; IEC 60529 IP66 |
| Size | 1.56 in diameter |
| Gasket | Oil-resistant |
| Type Number | Type 3R |
| Modification Services | Yes |
