nVent Hoffman ASB123R Splitter Box Type 1 3-wire 125 amps, 12.00x12.00x4.00, Gray, Steel
- MPN: ASB123R
- UPC: 783510138660
- PPN: HOF-ASB123R
- UNSPSC: 39121303
CAD
$98.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

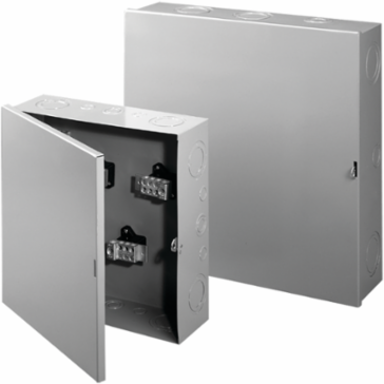

Splitter Box, Type 1 splits feeder circuit conductors into multiple branch circuit conductors. This Splitter Box Type 1 3-wire 125 amps, ASB123R item measures 12.00x12.00x4.00 inches with a material of Steel colored Gray.
Features
- Various numbers and sizes of combination knockouts are provided on all four sides: see Knockout Size and Spacing Table
- Hinged covers
- Mounting holes in back
- Includes single point ground lug
- Ground Splitter (ground bar) accessory available
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 305
- Protection Rating
- NEMA Type 1
- Color Code
- ANSI 61
- Number of Wires
- 3
- Main Lug Wire Size
- 14 AWG - 2/0 AWG
- Branch Lug Amps CU
- 110
- Branch Lug Quantity
- 3
- Weight
- 10
- Size
- 12.00x12.00x4.00 in
Height (H)305
Depth (D)102
FinishPowder Coated
Thickness (T)1.52
Main Lug Amps CU125
Main Lug Quantity1
Branch Lug Wire Size14 - 2/0 AWG
NEMA Rating1 Indoor, electrical protection
MaterialSteel
ColorGray
