nVent Hoffman ASB223R Splitter Box Type 1 3-wire 225 amps, 16.00x16.00x5.00, Gray, Steel
- MPN: ASB223R
- UPC: 783510138677
- PPN: HOF-ASB223R
- UNSPSC: 39121303
CAD
$156.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

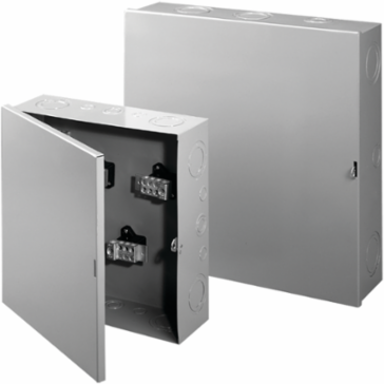

Splitter Box, Type 1 splits feeder circuit conductors into multiple branch circuit conductors. This Splitter Box Type 1 3-wire 225 amps, ASB223R item measures 16.00x16.00x5.00 inches with a material of Steel colored Gray.
Features
- Various numbers and sizes of combination knockouts are provided on all four sides: see Knockout Size and Spacing Table
- Hinged covers
- Mounting holes in back
- Includes single point ground lug
- Ground Splitter (ground bar) accessory available
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 406 |
| Protection Rating | NEMA Type 1 |
| Color Code | ANSI 61 |
| Number of Wires | 3 |
| Main Lug Wire Size | 6 AWG - 300 MCM |
| Branch Lug Amps CU | 175 |
| Branch Lug Quantity | 3 |
| Weight | 16.8 |
| Size | 16.00x16.00x5.00 in |
| Height (H) | 406 |
|---|---|
| Depth (D) | 127 |
| Finish | Powder Coated |
| Thickness (T) | 1.52 |
| Main Lug Amps CU | 225 |
| Main Lug Quantity | 1 |
| Branch Lug Wire Size | 14 - 2/0 AWG |
| NEMA Rating | 1 Indoor, electrical protection |
| Material | Steel |
| Color | Gray |
