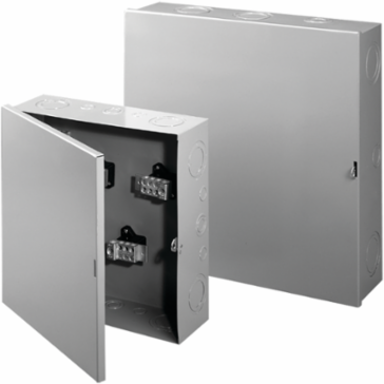

nVent Hoffman ASB403R Splitter Box Type 1 3-wire 400 amps, 22.00x22.00x6.00, Gray, Steel
- MPN: ASB403R
- UPC: 783510138684
- PPN: HOF-ASB403R
- UNSPSC: 39121303
CAD
$359.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Splitter Box, Type 1 splits feeder circuit conductors into multiple branch circuit conductors. This Splitter Box Type 1 3-wire 400 amps, ASB403R item measures 22.00x22.00x6.00 inches with a material of Steel colored Gray.
Features
- Various numbers and sizes of combination knockouts are provided on all four sides: see Knockout Size and Spacing Table
- Hinged covers
- Mounting holes in back
- Includes single point ground lug
- Ground Splitter (ground bar) accessory available
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 559
- Protection Rating
- NEMA Type 1
- Color Code
- ANSI 61
- Number of Wires
- 3
- Main Lug Wire Size
- 4 AWG - 600 MCM
- Branch Lug Amps CU
- 285
- Branch Lug Quantity
- 2
- Weight
- 38
- Size
- 22.00x22.00x6.00 in
Height (H)559
Depth (D)152
FinishPowder Coated
Thickness (T)1.9
Main Lug Amps CU400
Main Lug Quantity2
Branch Lug Wire Size4 AWG - 600 MCM
NEMA Rating1 Indoor, electrical protection
MaterialSteel
ColorGray
