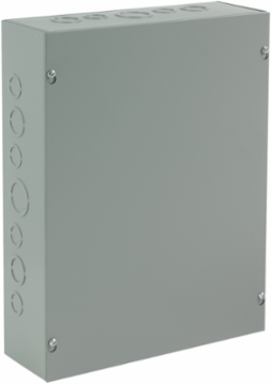

nVent Hoffman ASE18X18X6 Screw-Cover Enclosure Type 1 with Knockouts, 18x18x6, Gray, Steel
- MPN: ASE18X18X6
- UPC: 783510432706
- PPN: HOF-ASE18X18X6
- UNSPSC: 39121303
CAD
$64.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Screw-Cover Type 1 used in commercial and industrial applications requiring a junction or pull box. This Screw-Cover Type 1 with Knockouts, ASE18X18X6 item measures 18x18x6 inches with a material of Steel colored Gray.
Features
- Unique keyhole screw slots in the cover
- Available with or without knockouts
- Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts
- Optional flush-mounted door frame available
- Optional flush covers
- Flat, removable covers fastened with plated steel screws
- Provision for grounding
- Mounting holes on back of box
- Enclosures are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Additional
- Size
- 18 x 18 x 6 in
- Height
- 457 mm
- Weight
- 18.8 lb
- Finish
- Painted over plated surfaces
- Protection Rating
- NEMA Type 1, IP30
- IP Rating
- IP30
- Knockout Pattern
- A-B-C-D-E-F-G-H-I on sides A and B
- Mounting Holes
- On back of box
Depth152 mm
Width457 mm
MaterialSteel
ColorGray (ANSI 61)
NEMA Rating1 Indoor, electrical protection
KnockoutsYes, various sizes on all four sides
Cover Screw Quantity4
