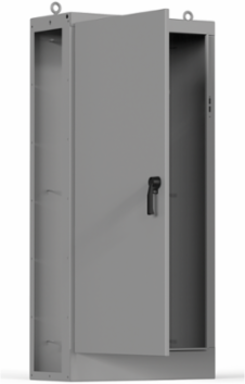

nVent Hoffman AU84X4024LLP Universal Free-Stand Left Side Open, 84.13x40.24x24.13, Gray, Steel

MPN: AU84X4024LLP
UPC: 783510389376
PPN: HOF-AU84X4024LLP
UNSPSC: 39121334

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NEMA Type 4 Universal Free-Stand enclosures are configureable for a variety of customer applications. This Universal Free-Stand Left Side Open, AU84X4024LLP item measures 84.13x40.24x24.13 inches with a material of Steel colored Gray.

Features

Seams are continuously welded and ground smooth
Body stiffeners in larger enclosures for extra rigidity
Body flange trough excludes liquids and contaminants
Heavy-duty lifting eyes anchor into reinforced top
Concealed, easy-to-remove hinges
Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
Order panels separately
Data pocket is high-impact thermoplastic
Oil-resistant door gasket
Bonding provision on door
Mechanical interlock standard on each enclosure; parts required to connect interlock system between adjacent enclosures are provided
Note: Sequestr solutions are compatible with Universal Free-Stand enclosures; reference Sequestr spec sheets and installation instructions for more details

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	1,022
Protection Rating	NEMA Type 4
Color Code	ANSI 61
Door Thickness	2.66
Weight	402
Material	Mild Steel
Connection	Yes
Color	ANSI 61 Gray
Mounting	Free Standing
NEMA Rating	Type 4, 12, 3R

Height (H)	2,137
Depth (D)	613
Finish	Powder Coated
Body Thickness	3.04
Cutout Type	Preferred
Number of Outlet	1
Cable Entry	No
Size	84.13 x 40.24 x 24.13 inch
Insulation	No
Cubic Capacity	47 Cu-Ft
