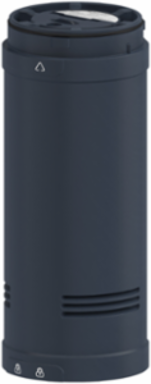

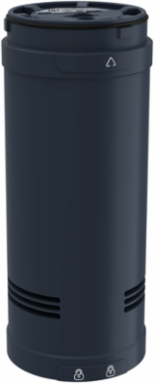

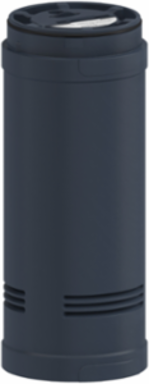

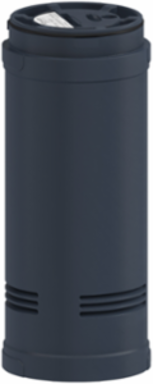

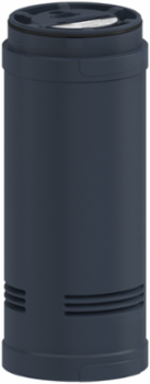

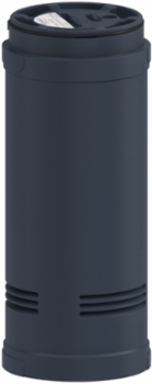

Schneider Electric XVUC9V Harmony XVU 60mm Audible Buzzer Unit 24V AC/DC 86 dB IP54

MPN: XVUC9V
PPN: SCH-XVUC9V

$323.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

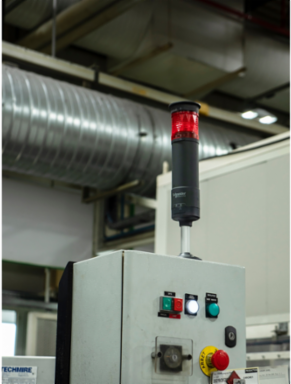

This Harmony XVU audible buzzer unit is supplied with 24V AC/DC. It has a diameter of 60mm. This indicating bank buzzer is an accessory designed as an audible and signalling unit for modular tower light for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection. 86 dB loud buzzer allows for clear alerting on critical machine statuses even from long distance. It complies with international standards and certifications (CSA, UL, RoHS, EAC, CE standards and IP65).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, United States

Physical Attributes

Housing Color	black

Complementary Attributes

Maximum Power Dissipation In W	5.55 W

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Current Consumption	<= 400 mA 24 V AC/DC, <= 400 mA 24 V AC/DC, <= 400 mA 24 V AC/DC, <= 135 mA 100...240 V AC, <= 135 mA 100...240 V AC, <= 135 mA 100...240 V AC<= 400 mA 24 V AC/DC, <= 400 mA 24 V AC/DC, <= 400 mA 24 V AC/DC, <= 135 mA 100...240 V AC, <= 135 mA 100...240 V AC, <= 135 mA 100...240 V AC
Certificate Agency	UL, CSA, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.1908520751624422
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.4394456477199555
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Assembly Style	customer assembly
Component Name	XVU
Mounting Diameter	60 mm
Product Or Component Type	modular tower light
Returnability	Yes
Software Version	v5.9.4
Sustainable Packaging	Yes
Housing Color	black
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	121.545
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Length Total	155 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8531809051

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Material	PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene) V-0 UL 94
Carbon Footprint Of The Distribution Phase [A4]	0.02863721243341334, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.22650383422115555, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	56 kg CO2 eq., 56.33550941780821
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308032EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Acoustic Level	86 dB 1 m
Beacon Or Indicator Bank Unit Type	sound unit
Localisation On Device	AC/DC adapter
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XVU
Signalling Type	adjustable vocal sound
Sound Frequency	20 Hz...20 KHz
Total Lifecycle Carbon Footprint	58 kg CO2 eq.
Pep Code	ENVPEP2308032EN
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	16
[Us] Rated Supply Voltage	24 V AC/DC
Package Weight(Lbs)	373.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-20-50 °C, -20-50 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	58.22094818734517
Environmental Disclosure	ENVPEP2308032EN
Ip Degree Of Protection	IP54
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2308032EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2308032EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29
