Federal Signal AM15XD2 AudioMaster Public Address Speaker, 15W, Hazardous Location, UL Fire, UL and cUL CID2, 8 Ohms, Gray
Federal Signal AM15XD2 AudioMaster Public Address Speaker, 15W, Hazardous Location, UL Fire, UL and cUL CID2, 8 Ohms, Gray
- MPN: AM15XD2
- UPC: 782979208235
- PPN: FDS-AM15XD2
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1021.11/ EA
Description

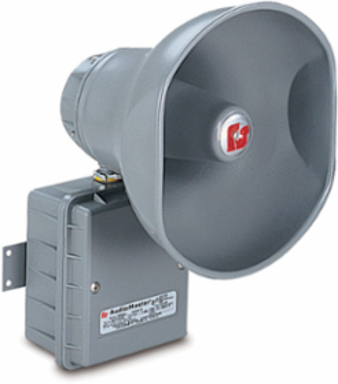

Model AM15XD2 is an 8 Ohm, re-entrant, Type 4X speaker for use in public address or paging applications. Model AM15XD2 features a rugged cone and projector constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum housing. All external surfaces are sealed with a gray powder coat paint.Four screws inserted through the metal tabs located at the sides of the housing provide a quick wall mount installation.Two 1/2-inch conduit openings in the base of the housing simplify wiring and accommodate inbound and outbound audio wiring. The unique shape of the speaker projector provides a 60° sound dispersion. The projector is held in position with a Teflon coated lock ring that can be rotated 180° in order to obtain the desired sound distribution.Model AM15XD2 can be used with the AudioMaster® CTS series amplifiers and the AudioRouter™ to complete an industrial-grade public address system.
Features
- 8 Ohm
- 15 watt
- Re-entrant horn design
- Wall mount
- 1/2-inch conduit openings
- Type 4X, IP66 enclosure
- IP69K compliant
- UL and cUL for Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; Class III
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Gray
- dBa 1 Meter
- 120
- Availability
- Contact Us for Availability
- Operating Temp.
- -40˚ to +150˚F (-40˚ to +66˚C)
- Depth
- 12.25 in, 31.115 cm
- Width
- 7.94 in, 20.1676 cm
Weight4.85 lbs
Certification ListingUL, cUL
dBa 10 Ft110
Mount TypeWall
Public Address Model DescriptionAM15XD2
Height12.25 in, 31.115 cm
