Federal Signal AM15 AudioMaster Public Address Speaker, 15W, UL Fire, 8 Ohms, Gray
Federal Signal AM15 AudioMaster Public Address Speaker, 15W, UL Fire, 8 Ohms, Gray
- MPN: AM15
- UPC: 782979208211
- PPN: FDS-AM15
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$894.48/ EA
Description

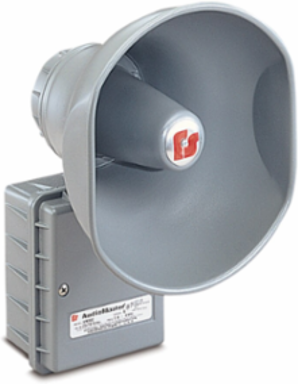

Model AM15 is a rugged, re-entrant speaker for use in public address or paging applications. This 15 watt speaker features a rugged speaker cone and projector constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are sealed with gray powder coat paint.Two screws inserted through the back of the wiring compartment provide for simple wall mount installation. The bottom of the AM15 contains two 1/2-inch conduit openings to accommodate inbound and outbound audio wiring. The unique shape of the AM15 projector provides a 60° sound dispersion. The projector is held in position with a Teflon coated lock ring that can be rotated 180° in order to obtain the desired sound distribution.Model AM15 is rated for indoor and outdoor use. Model AM15 can be used with the AudioMaster® CTS series amplifiers and the AudioRouter™ to complete an industrial grade public address system.
Features
- 8 Ohm
- 15 watt
- Several mounting options
- Re-entrant horn design
- Pre-assembled
- UL and cUL
Specifications
Specifications
- Country of Origin
- United States
- Audio Input
- 25/70
- Certification Listing
- UL, cUL
- dBa 10 Ft
- 110
- Availability
- Contact Us for Availability
- Operating Temp.
- -40˚ to +150˚F (-40˚ to +66˚C)
- Depth
- 12.25 in, 31.115 cm
- Width
- 8.0 in, 20.32 cm
Weight6 lbs
Body ColorGray
dBa 1 Meter120
Driver Impedance8 ohm
Mount TypeWall
Public Address Model DescriptionAM15
Height12.25 in, 31.115 cm
