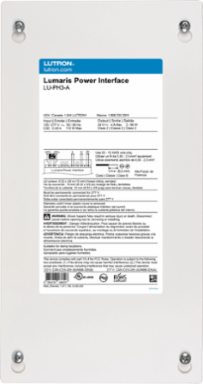

Lutron LU-PH3-A Hardwired Power Interface for Lumaris Tunable White Tape Light, 96W Output, 120/277V
- MPN: LU-PH3-A
- UPC: 784276311878
- PPN: LUT-LU-PH3-A
- UNSPSC: 39121406
CAD
$438.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Lutron hardwired power interface for Lumaris Tunable White Tape Light allows for more versatility during project installations by powering up to 3 Lumaris wireless controllers and 48ft of Lumaris LED tape. Three (3) barrel-to-terminal adapters for easy wiring from the Wireless Controller to the hardwired power interface are included. The Lutron Lumaris tunable white LED tape light solution is the first professional grade tape light that’s native to Lutron RadioRA 3 and HomeWorks QSX.
Features
- Lutron Hardwired Power Interface for Lumaris Tunable White Tape Light

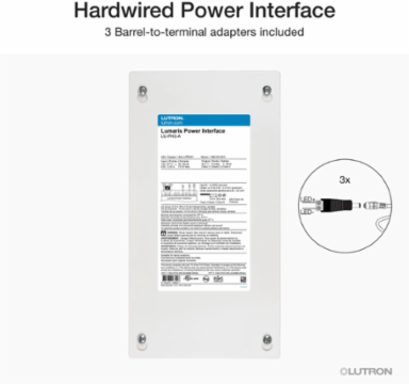

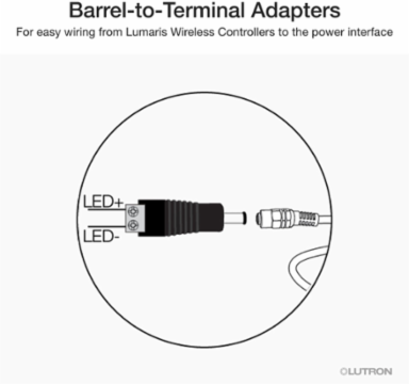

- Includes (1) power interface for Lumaris Tunable White Tape Light and (3) barrel-to-terminal adapters

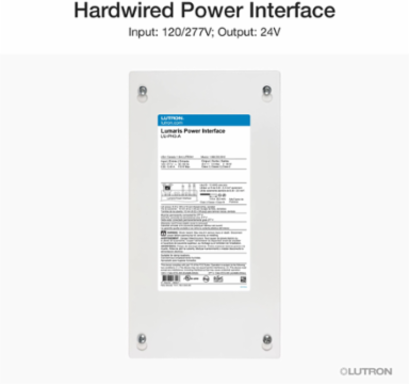

- Input: 120/277V, (50/60Hz); Output 24V
- Accepts 12 AWG to 20 AWG; see wiring section on product spec sheet for specific length configurations

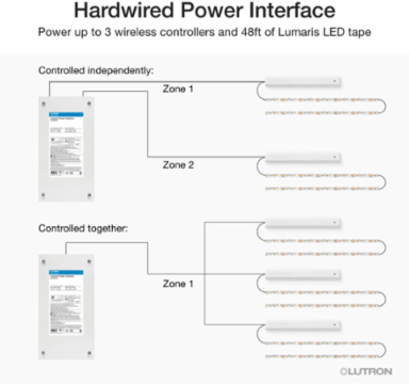

- For independent control, wireless controllers must be homerun back to the power interface; For zone or grouped applications, wireless controllers can either be homerun or T-tapped back to the power interface
- Must be used with a Lumaris Wireless Controller for RadioRA3 (RRL-TWC*) or the Lumaris Wireless Controller for HomeWorks QSX (HWL-TWC*)
- Indoor damp/Dry location rating; Output short-circuit and overload-protection
- Suitable for damp locations
Documentation & Downloads
Specifications
Key Specifications
| Application | Power interface with three barrel-to-terminal adapters |
|---|---|
| Connection | barrel to terminal |

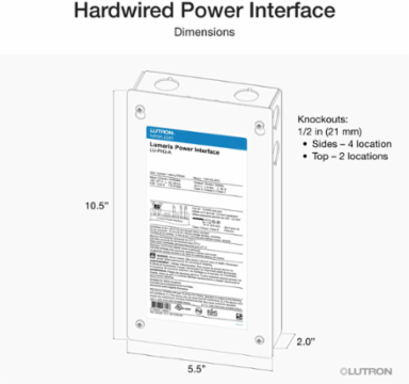

| Depth | 5.5 in |
| Height | 10.5 in |
| Voltage Rating | 120/277 V |
| Wire Size | 20-12 |
| Input Wattage | 110 W |
| Output Wattage | 96 W |
| Family Color | White |
|---|---|
| Decorative Color | White |
| Environmental Conditions | 0% to 90% humidity, non-condensing;indoor use only |
| Type | Hard-wired Power Interface |
| Width | 2 in |
| Mounting | Clip |
| Operating Temperature | 32;140 F |
