Lutron LU-PH3-B Lutron 96W Hardwired Power Interface with Flying Leads, works with Lumaris RGB + Tunable White LED Tape Light, 120/277V Input, 24V Output, LU-PH3-B
- MPN: LU-PH3-B
- UPC: 784276823784
- PPN: LUT-LU-PH3-B
- UNSPSC: 39121406
CAD
$437.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

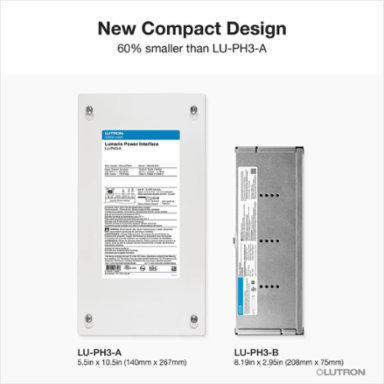

The Lutron 96W hardwired power interface, now 60% smaller, allows for more versatility during project installations, and can power up to 3 Lumaris multi-channel wireless controllers and 32.8 ft of Lumaris RGB + tunable white LED tape. This power interface is also equipped with flying leads that allow for easier wiring to the Multi-Channel Wireless Controller.
Features
- Includes (1) 96W hardwired power interface with flying leads
- Input: 120/277V, (50/60Hz); Output 24V
- Accepts 12 AWG to 20 AWG; see wiring section on product spec sheet for specific length configurations

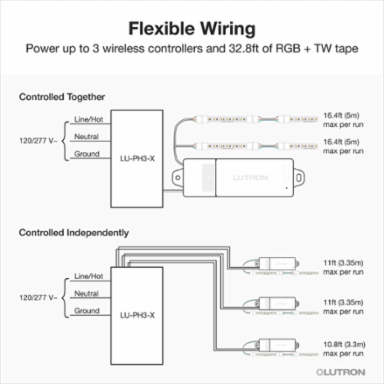

- For independent control, wireless controllers must be homerun back to the power interface
- For zone or grouped applications, wireless controllers can either be homerun or T-tapped back to the hardwired power interface

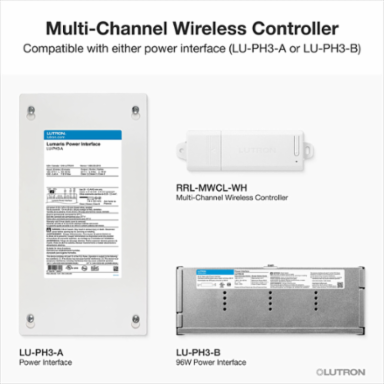

- Must be used with a Lumaris Multi-Channel Wireless Controller for RadioRA3 (RRL-MWCL-WH) or the Lumaris Wireless Controller for HomeWorks QSX (HWL-MWCL-WH)
- Indoor damp/Dry location rating; Output short-circuit and overload-protection
