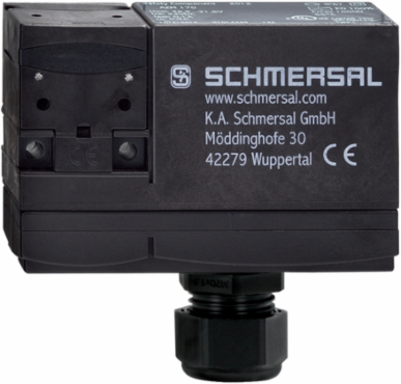

Schmersal 101136315 Electromechanical Solenoid Interlock 110VAC, IP67, Compact Design, 2 NC Contacts

MPN: 101136315
PPN: SCM-101136315

$645.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Electromechanical Solenoid Interlock 110VAC, IP67, Compact Design, 2 NC Contacts

Features

1 Cable entry M 20 x 1.5
IDC method of termination
Manual release
Thermoplastic enclosure
Double-insulated
Compact design
Interlock with protection against incorrect locking.
Long life
High holding force

Documentation & Downloads

Specifications

Electrical data

Thermal test current	6 A
Required rated short-circuit current	1,000 A
Switching element	Opener (NC)
Switching principle	slow action, positive break NC contact
Material of the contacts, electrical	Silver

Rated control voltage	110 VAC
Electrical power consumption, maximum	12 W

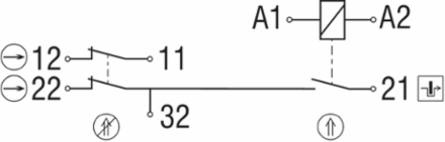

Note (Switching element)	Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
Switching frequency	1,000 /h

Note

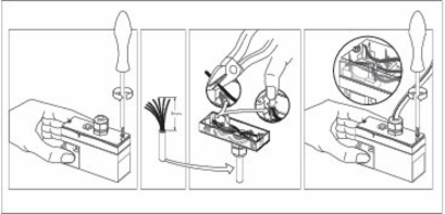

Note (General)	This type termination (IDC) method enables simple connetion of flexible conductors without the need for the use of conductor ferrules

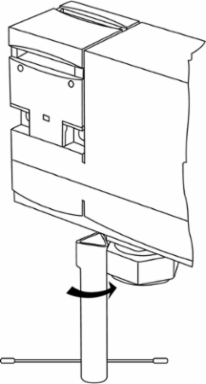

Note (Manual release)	bottom \| For manual release using M5 triangular key, available as accessory

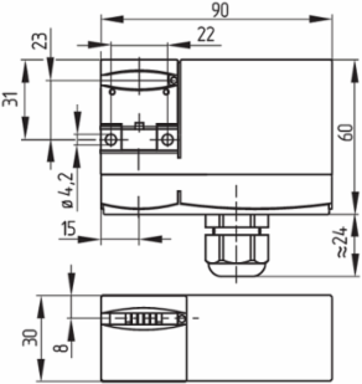

Mechanical data - Dimensions

Length of sensor	30 mm
Height of sensor	84 mm

Width of sensor	90 mm

Ambient conditions - Insulation values

Rated insulation voltage U	250 VAC
Overvoltage category	III

Rated impulse withstand voltage U	4 kV
Degree of pollution	3

Electrical data - Safety contacts

Voltage, Utilisation category AC-15	230 VAC
Voltage, Utilisation category DC-13	24 VDC

Current, Utilisation category AC-15	4 A
Current, Utilisation category DC-13	4 A

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

Safety classification - Safety outputs

B	2,000,000 Operations

Electrical data - Magnet control

Magnet switch-on time	100 %
Test pulse interval, minimum	50 ms

Test pulse duration, maximum	5 ms

General data - Features

Power to lock	Yes
Number of actuating directions	2

Manual release	Yes
Number of safety contacts	2

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-1
Working principle	electromechanical
Gross weight	274 g

Coding level according to EN ISO 14119	Low
Enclosure material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Safety classification

Standards	EN ISO 13849-1

Mission time	20 Year(s)

Other data

Note (applications)	sliding safety guard \| removable guard \| hinged safety guard

Ambient conditions

Degree of protection	IP67
Storage and transport temperature, minimum	+25 °C

Ambient temperature	-25 ... +60 °C
Storage and transport temperature, maximum	+85 °C

Mechanical data - Connection technique

Termination	IDC method of termination
Cable section, maximum	1 mm²

Cable section, minimum	0.75 mm²
Allowed type of cable	flexible

Mechanical data

Mechanical life, minimum	1,000,000 Operations
Holding force F	1,300 N
Positive break travel	11 mm
Positive break force, minimum	17 N
Mounting	Screws
Tightening torque of the fastening screws for the housing cover, minimum	0.7 Nm
Note	Torx T10

Holding force F	1,000 N
Latching force	30 N
Positive break force per NC contact, minimum	8.5 N
Actuating speed, maximum	2 m/s
Type of the fixing screws	2x M5
Tightening torque of the fastening screws for the housing cover, maximum	1 Nm
