Schmersal 103034194 AZM40B Safe Interlock with High Holding Force, 2000 N, RFID Technology, Compact Design

MPN: 103034194
PPN: SCM-103034194

$1047.74

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

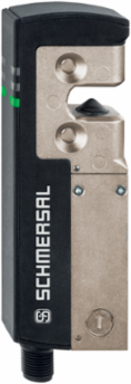

AZM40B Safe Interlock with High Holding Force, 2000 N, RFID Technology, Compact Design

Features

Compact, flat design
119,5 mm x 40 mm x 20 mm
High holding force 2000
Latching force 40 N
RFID-technology for needs-based protection against tampering
Individually coded version with coding level "High" according to ISO 14119
Only one version for hinged and sliding doors
Actuator can approach interlock continuously within a 180 degree angle.
Symmetrical mounting, can be bolted on either side

Documentation & Downloads

Specifications

Electrical data - Safety digital inputs

Designation, Safety inputs	X1 and X2
Current consumption at 24 V	5 mA
Test pulse interval, minimum	100 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Switching thresholds	−3 V … 5 V (Low) \| 15 V … 30 V (High)
Test pulse duration, maximum	1 ms
Classification ZVEI CB24I, Sink	C1

Electrical data

Operating voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Rated operating voltage	24 VDC
Required rated short-circuit current	100 A
Time to readiness, maximum	4,000 ms
Current consumption magnet at switching moment, peak	600 mA / 100ms

No-load supply current I	100 mA
Operating current	1,200 mA
External wire and device fuse rating	2 A gG
Switching frequency, maximum	0.25 Hz

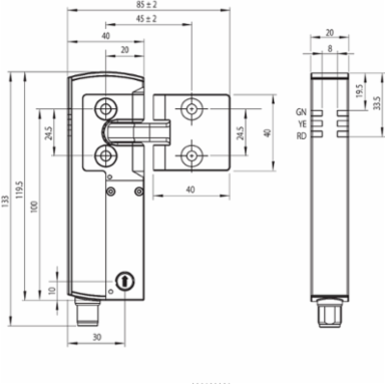

Mechanical data - Dimensions

Length of sensor	119.5 mm
Height of sensor	20 mm

Width of sensor	40 mm

Pin assignment

PIN 1	A1 Supply voltage UB
PIN 3	A2 GND
PIN 5	OUT Diagnostic output
PIN 7	Y2 Safety output 2

PIN 2	X1 Safety input 1
PIN 4	Y1 Safety output 1
PIN 6	X2 Safety input 2
PIN 8	IN Solenoid control

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	3

Electrical data - Magnet control

Designation, Magnet control	IN
Magnet switch-on time	100 %
Test pulse interval, minimum	40 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3
Current consumption at 24V, maximum	15 mA

Switching thresholds	-3 V … 5 V (Low) \| 15 V … 30 V (High)
Test pulse duration, maximum	5 ms
Classification ZVEI CB24I, Sink	C0
Current consumption at 24V, minimum	10 mA

General data - Features

Actuator monitored	Yes
Manual release	Yes
Cross-circuit detection	Yes
Safety functions	Yes
Number of safety contacts	2

Latching	Yes
Short circuit detection	Yes
Series-wiring	Yes
Integral system diagnostics, status	Yes

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-3 \| EN IEC 61508
Coding level according to EN ISO 14119	High
Frequency band RFID	125 kHz
Enclosure material	Light alloy die cast and plastic (glass-fibre reinforced thermoplastic, self-extinguishing)
Reaction time, maximum	100 ms
Reaction time, switching off safety outputs via safety inputs, maximum	1.5 ms

Coding	Individual coding
Working principle	RFID
Transmitter output RFID, maximum	-6 dB/m
Gross weight	300 g
Duration of risk, maximum	200 ms

Safety classification

Standards	EN ISO 13849-1 \| EN IEC 61508

Electrical data - Safety digital outputs

Designation, Safety outputs	Y1 and Y2
Design of control elements	short-circuit proof, p-type
Leakage current I	0.5 mA
Current, Utilisation category DC-12	0.25 A
Current, Utilisation category DC-13	0.25 A
Test pulse duration, maximum	0.5 ms
Classification ZVEI CB24I, Sink	C1 \| C2

Rated operating current (safety outputs)	250 mA
Voltage drop U	2 V
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC
Test pulse interval, typical	1000 ms
Classification ZVEI CB24I, Source	C2

Safety classification - Interlocking function

Performance Level, up to	e
PFH value	1.10 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Category	4
PFD value	8.90 x 10⁻⁵
Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67 \| IP66
Storage and transport temperature, minimum	-40 °C
Relative humidity, maximum	93 %
Resistance to vibrations	10 … 55 Hz, amplitude 1 mm
Protection class	III

Ambient temperature	+0 ... +55 °C
Storage and transport temperature, maximum	+85 °C
Note (Relative humidity)	non-condensing \| non-icing
Restistance to shock	30 g / 11 ms
Permissible installation altitude above sea level, maximum	2,000 m

Mechanical data - Connection technique

Termination	Connector M12, 8-pole, A-coded
Note (length of the sensor chain)	Cable length and cross-section change the voltage drop dependiing on the output current

Length of sensor chain, maximum	30 m

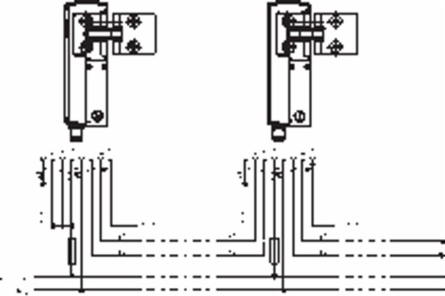

Note (series-wiring)	Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD

Electrical data - Diagnostic outputs

Designation, Diagnostic outputs	OUT
Voltage drop U	2 V
Current, Utilisation category DC-12	0.05 A
Current, Utilisation category DC-13	0.05 A

Design of control elements	short-circuit proof, p-type
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC

Mechanical data - Switching distances according EN IEC 60947-5-3

Assured switching distance "ON" S	1 mm

Assured switching distance "OFF" S	8 mm

Mechanical data

Interlocking principle	bistable
Mechanical life, actuator cycles	200,000 Operations
Holding force F	2,600 N
Note (Latch force)	+/- 25%
Mounting	mounting holes countersink
Tightening torque of the fixing screws, minimum	4 Nm

Mechanical life, locking cycles	1,000,000 Operations
Holding force F	2,000 N
Latching force	40 N
Actuating speed, maximum	0.5 m/s
Type of the fixing screws	2x M5
