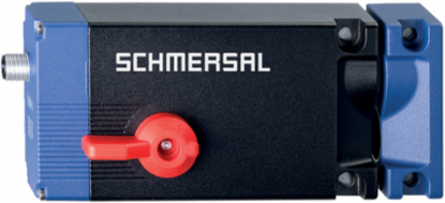

Schmersal 103003593 Safety Interlock AZM400 with Bistable Motor Drive, 13,000 N Holding Force, IP67
- MPN: 103003593
- PPN: SCM-103003593
CAD
$1046.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Interlock AZM400 with Bistable Motor Drive, 13,000 N Holding Force, IP67
Features
- Universal coding with RFID technology
- Connector M12, 8-pole
- Guard locking monitored
- 1 Diagnostic output
- Emergency exit
- Bistable, motor-driven system
- Clamping force 10.000
- Release possible against lateral forces up to 300 N
- PL e / cat. 4 / SIL 3 for interlocking and guard locking function
- Two-channel input signal of the guard locking function
- Operation on P/P- and P/N-switching outputs
- High tolerance to door misalignment
Documentation & Downloads
Specifications
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- No-load supply current I
- 100 mA
- Operating current
- 50 mA
- External wire and device fuse rating
- 2 A gG
- Switching frequency, maximum
- 0.3 Hz
- Minimal average cycle time (with continuous operation)
- 20 s
Current consumption, maximum600 mA
Rated operating voltage24 VDC
Required rated short-circuit current100 A
Time to readiness, maximum1,500 ms
Open / close cycle (motor), minimum3

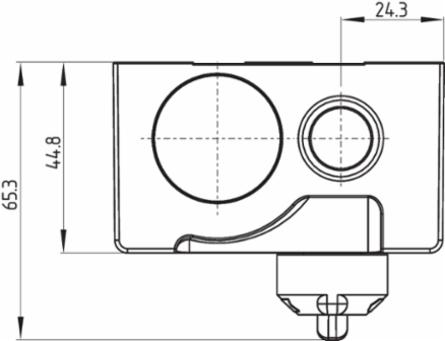

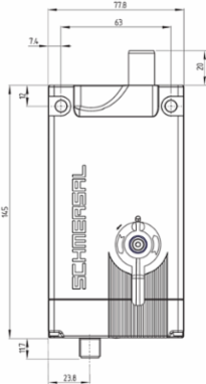

Mechanical data - Dimensions
- Length of sensor
- 65.3 mm
- Height of sensor
- 156.7 mm
Width of sensor77.8 mm
Pin assignment
- PIN 1
- A1 Supply voltage UB
- PIN 3
- A2 GND
- PIN 5
- OUT Diagnostic output
- PIN 7
- Y2 Safety output 2
PIN 2E1 Control input 1
PIN 4Y1 Safety output 1
PIN 6E3 Control input 3
PIN 8E2 Control input 2
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Solenoid interlock monitored
- Yes
- Short circuit detection
- Yes
- Safety functions
- Yes
- Number of diagnostic signals
- 1
Emergency exitYes
Cross-circuit detectionYes
Integral system diagnostics, statusYes
Number of safety contacts2
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- Low
- Frequency band RFID
- 125 kHz
- Enclosure material
- Light alloy die-casting
- Reaction time, switching off safety outputs via actuator, maximum
- 100 ms
CodingUniversal coding
Working principleMagnetic field | RFID
Transmitter output RFID, maximum-6 dB/m
Gross weight846 g
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
Electrical data - Safety digital outputs
- Designation, Safety outputs
- Y1 and Y2
- Design of control elements
- short-circuit proof, p-type
- Leakage current I
- 0.5 mA
- Current, Utilisation category DC-12
- 0.25 A
- Current, Utilisation category DC-13
- 0.25 A
- Test pulse duration, maximum
- 0.5 ms
- Classification ZVEI CB24I, Sink
- C1 | C2
Rated operating current (safety outputs)250 mA
Voltage drop U2 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Test pulse interval, typical1000 ms
Classification ZVEI CB24I, SourceC2
Safety classification - Interlocking function
- Performance Level, up to
- e
- PFH value
- 1.00 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Category4
PFD value9.00 x 10⁻⁵
Mission time20 Year(s)
Electrical data - Control inputs Guard locking function
- Switching thresholds of the control inputs
- −3 V … 5 V (Low) | 15 V … 30 V (High)
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
- Current consumption at 24V, maximum
- 10 mA
Classification ZVEI CB24I, SinkC0
Current consumption at 24V, minimum5 mA
Allowable discrepancy time (input), maximum10 s
Ambient conditions
- Degree of protection
- IP67 | IP66
- Storage and transport temperature, minimum
- -40 °C
- Relative humidity, maximum
- 93 %
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm
- Protection class
- III
Ambient temperature-20 ... +55 °C
Storage and transport temperature, maximum+85 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Termination
- Connector M12, 8-pole, A-coded
Electrical data - Diagnostic outputs
- Designation, Diagnostic outputs
- OUT
- Voltage drop U
- 2 V
- Current, Utilisation category DC-12
- 0.05 A
- Current, Utilisation category DC-13
- 0.05 A
Design of control elementsshort-circuit proof, p-type
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
NoteThe diagnostic output are not safety relevant outputs!
Safety classification - Guard locking function
- Performance Level, up to
- e
- PFH value
- 1.80 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Category4
PFD value1.60 x 10⁻⁴
Mission time20 Year(s)
Mechanical data
- Interlocking principle
- bistable
- Note (Mechanical life)
- Which have a lateral force Ftrans = 100 N: 100.000 operations
- Minimum distance devices
- 30 mm
- Holding force F
- 13,000 N
- Note (Lateral force at bolt return)
- Does not apply to emergency exit, Bowden cable and manual release
- NOTE_DESIGN_MOUNTING_SCREW
- Property class min. 10.9
Mechanical life, minimum1,000,000 Operations
Angular misalignment between solenoid interlock and actuator, maximum2 °
Holding force F10,000 N
Lateral force at bolt return, maximal (against locked door)300 N
Type of the fixing screws2x M6
Tightening torque of the screw8 Nm
Accessory
- Recommendation (actuator)
- AZM400-B1
Approvals - Standards
- Certificates
- TÜV | cULus | FCC | IC
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
