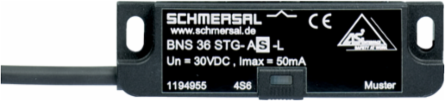

Schmersal 101194956 AS-Interface Safety Sensor, 88 mm x 25 mm x 13 mm, IP67, Magnet Drive
Schmersal 101194956 AS-Interface Safety Sensor, 88 mm x 25 mm x 13 mm, IP67, Magnet Drive
- MPN: 101194956
- PPN: SCM-101194956
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$595.11/ EA
Features
- 2 m Pre-wired cable with connector M12, straight, 4-pole
- Safety sensor
- Thermoplastic enclosure
- no mechanical wear
- 88 mm x 25 mm x 13 mm
- Integrated AS-Interface
- Concealed mounting possible
- Long life
- Insensitive to transverse misalignment
- Insensitive to soiling
- AS-Interface LED and status display
Specifications
Electrical data - AS-Interface specification
- AS-i Specification
- Safety-Slave
- AS-i Profile
- S-0.B.F.E
- AS-i, ID-Code
- 0xB
- AS-i, ID-Code2
- 0xE
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Parameter bits, P0 ... P3
- No function
- AS-i Input module address
- 0
AS-i VersionV 2.1
AS-i, IO-Code0x0
AS-i, ID-Code10xF
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0 … DO 3No Function
Note (AS-i Parameter bits)Set the parameter outputs to "1111" (0xF)
Note (AS-i Input module address)Preset to address 0, can be changed through AS-interface bus master or hand-held programming device

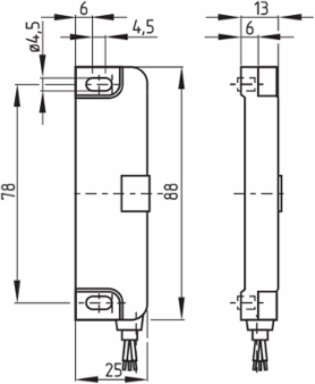

Mechanical data - Dimensions
- Length of sensor
- 13 mm
Height of sensor25 mm
Pin assignment
- PIN 1
- AS-i +
- PIN 3
- AS-Interface -
PIN 2n.c.
PIN 4n.c.
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Coding
- Yes
Integral system diagnostics, statusYes
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
- Installation conditions (mechanical)
- quasi-flush
- Gross weight
- 110 g
Working principleMagnetic drive
Enclosure materialGlass-fibre, reinforced thermoplastic
Reaction time, maximum100 ms
Safety classification
- Standards
- EN IEC 61508
- Category
- 4
- Note (PFH-value)
- up to max. 500,000 switching cycles/year
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value1.24 x 10⁻⁸ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - AS Interface
- Rated operating voltage
- 18 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum50 mA
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Connecting cable with M12 connector, straight, 4-pole
- Wire cross-section
- 0.23 mm
- Material of the Cable mantle
- LSYY
Length of cable2 m
Wire cross-section23 AWG

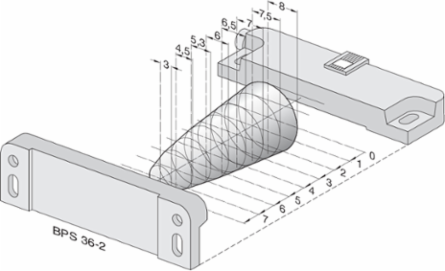

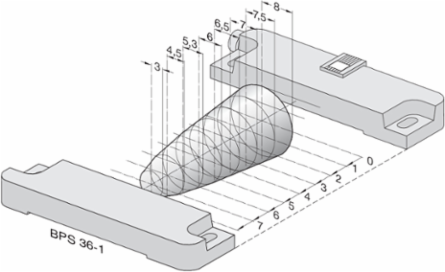

Mechanical data - Switching distances according EN IEC 60947-5-3
- Note (Switching distance Sn)
- Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.
- Assured switching distance "OFF" S
- 17 mm
Assured switching distance "ON" S7 mm
Mechanical data
- Actuating element
- Magnet
- Note (Repeat accuracy R)
- Wiederholgenauigkeit R ≤ 0,1 x S
Door hingeRight
Direction of motionHead-on to the active surface
Accessory
- Recommendation (actuator)
- BPS 36-2
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW
Status indication
- Note (LED switching conditions display)
- (1) LED green-red (AS-i Duo LED): Supply voltage / Communication error / Slave address = 0 | (2) LED yellow: Enabling status
