Weidmuller 1944680000 PCB Plug-In Connector, 3.50 mm, 8 Poles, Tension-Clamp Connection, 180
- MPN: 1944680000
- PPN: WDM-1944680000
CAD
$14.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

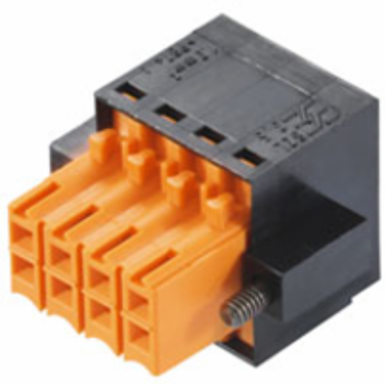

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 8, 180°, Tension-clamp connection, Clamping range, max. : 1 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 150 V
- Rated current (Use group B / UL 1059)
- 7 A
- Wire cross-section, AWG, min.
- AWG 28
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group C / UL 1059)50 V
Rated current (Use group C / UL 1059)7 A
Wire cross-section, AWG, max.AWG 18
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform

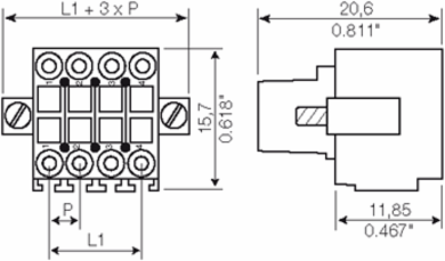

Dimensions And Weights
- Width
- 20.8 mm
- Height
- 15.7 mm
- Depth
- 20.6 mm
- Net weight
- 2.73 g
Width (inches)0.819 inch
Height (inches)0.618 inch
Depth (inches)0.811 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

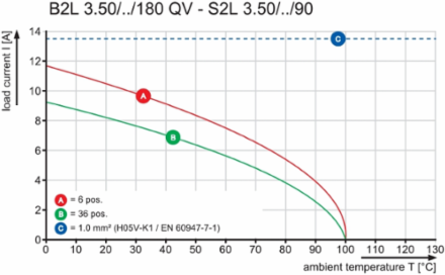

- Rated current, max. number of poles (Tu=20°C)
- 8.2 A
- Rated current, max. number of poles (Tu=40°C)
- 7 A
- Rated voltage for surge voltage class / pollution degree III/2
- 160 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 1.5 kV
Rated current, min. number of poles (Tu=20°C)10.6 A
Rated current, min. number of poles (Tu=40°C)9.1 A
Rated voltage for surge voltage class / pollution degree II/2200 V
Rated voltage for surge voltage class / pollution degree III/380 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 77 A
Material Data
- Insulating material
- PBT
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact material
- Copper alloy
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colourblack
Insulating material groupIIIa
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-30 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
UNSPSC30-21-18-10
System Parameters
- Product family
- OMNIMATE Signal - series B2L/S2L 3.50 - 2-row
- Wire connection method
- Tension-clamp connection
- Pitch in inches (P)
- 0.138 inch
- Number of poles
- 8
- L1 in inches
- 0.413 inch
- Pin series quantity
- 2
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
- Can be coded
- Yes
- Tightening torque for screw flange, min.
- 0.2 Nm
- Screwdriver blade
- 0.4 x 2.5
- Plugging cycles
- 25
- Pulling force/pole, max.
- 4 N
Type of connectionField connection
Pitch in mm (P)3.5 mm
Conductor outlet direction180°
L1 in mm10.5 mm
Number of rows1
Rated cross-section1 mm²
Touch-safe protection acc. to DIN VDE 0470IP 20
Stripping length7 mm
Tightening torque for screw flange, max.0.25 Nm
Screwdriver blade standardDIN 5264
Plugging force/pole, max.5 N
Packing
- Packaging
- Box
- VPE width
- 83 mm
VPE length69 mm
VPE height105 mm
Notes
- Notes
- Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch We recommend crimp shape A for wire-end ferrules with crimping tool PZ 6/5 (order no. 9011460000) for the larger wire cross-sections. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.08 mm²
- Wire connection cross section AWG, min.
- AWG 28
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.14 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.14 mm²
- Reference text
- The outside diameter of the plastic collar should not be larger than the pitch (P).
Clamping range, max.1 mm²
Wire connection cross section AWG, max.AWG 18
Solid, max. H05(07) V-U1 mm²
Flexible, max. H05(07) V-K1 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.0.34 mm²
w. wire end ferrule, DIN 46228 pt 1, max.0.34 mm²
Max. clamping range1 mm²
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Wire cross-section, AWG, min.
- AWG 28
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1488444
Rated current (Use group B / CSA)7 A
Wire cross-section, AWG, max.AWG 18
