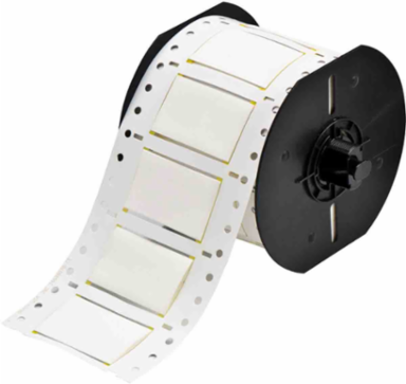

Brady B33D-750-2-345 PermaSleeve High Temp PVDF Wire Marking Sleeves 0.75 Inch Dia x 2 Inch W, Roll of 250
Brady B33D-750-2-345 PermaSleeve High Temp PVDF Wire Marking Sleeves 0.75 Inch Dia x 2 Inch W, Roll of 250
- MPN: B33D-750-2-345
- UPC: 662820968252
- PPN: BRD-B33D-750-2-345
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2217.84/ EA
Description
PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.
Features
- 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
- Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
- Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
- Operating temperature range of -67 to 437° F (-55 to 225° C)
Specifications
Specifications
- Applications
- Electrical Labeling; Temperature Indicating Labeling; Wire and Cable Labeling
- Color
- White
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202G; NASA SP-R-0022A; SAE-AMS-DTL-23053; SAE-AS-81531
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- i3300; BBP33
- Quantity per Roll
- 250
- Recommended Ribbon
- B30-R6000
- Shrink Ratio
- 2:1
- Suggested Ribbon Series
- R6000 Halogen Free
- Total Quantity
- 250
- Brady Material Number
- B-345
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-345
- Diameter as Supplied (mm/cm/m)
- 19.1 mm
- Dimensions (Metric)
- 50.80 mm W x 31.80 mm H
- Height (in/ft/yd)
- 1.25 in
- Maximum Service Temperature °C
- 225 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.7 in
- Maximum Wire Gauge
- 4/0 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 9.53 mm
- Recovered Diameter (in/ft/yd)
- 0.375 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (mm/cm/m)
- 19.1 mm Dia x 50.8 mm W
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Web Width (mm/cm/m)
- 89.00 mm
- Wire Gauge Range
- 2 AWG to 4/0 AWG
Brand NameBrady®
DiagramIcon 14 (v)
FinishMatte
IndustryAerospace; Electrical; Mass transit; Voice & data communication
Manufacturer Part NumberB33D-750-2-345
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)i3300
Quantity per Row1
Ribbon SeriesB30-R6000HF
Software CompatibilityBrady Workstation, LabelMark, MarkWare
Total Qty per Pack250 Sleeve(s) / Box
Trade NameBBP®33 PermaSleeve®
Indoor or Outdoor UseOutdoor Use
MaterialHigh Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; High Temperature-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)0.75 in
Dimensions1.25 in H
Dimensions 21.25 in H
Height (mm/cm/m)31.80 mm
Maximum Service Temperature °F437 °F
Maximum Wire Diameter (mm/cm/m)17.80 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.375 in
Minimum Wire Gauge2 AWG
Recovered Diameter (mm/cm/m)9.5 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)0.75 in Dia x 2 in W
Sleeve Width (in/ft/yd)2 in
Vertical Repeat1.625 in
Wire Diameter Range0.375 in to 0.7 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
