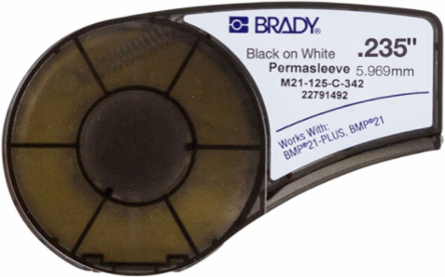

Brady M21-125-C-342 BMP21 PermaSleeve Heat Shrink Polyolefin Wire Sleeves 0.125 Inch Dia x 7 ft L
Brady M21-125-C-342 BMP21 PermaSleeve Heat Shrink Polyolefin Wire Sleeves 0.125 Inch Dia x 7 ft L
- MPN: M21-125-C-342
- UPC: 662820899938
- PPN: BRD-M21-125-C-342
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$84.97/ EA
Description

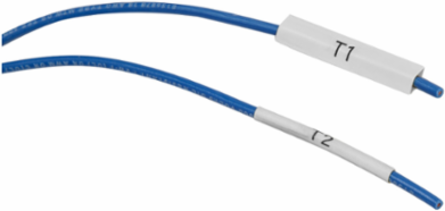

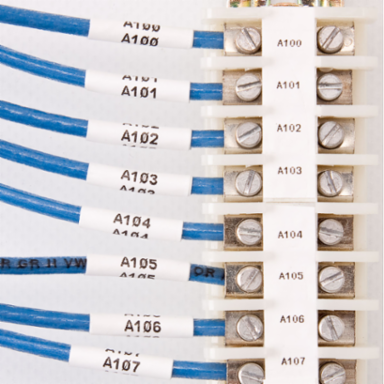

The B-342 Polyolefin PermaSleeve material is a non-adhesive, heat-shrinking sleeve that fits around wires or cables for easy permanent identification
Features
- 3:1 heat-shrinking wire sleeve is ideal for labeling in harsh environments and is resistant to chemicals, grease, oil and cleaning agents
- Polyolefin wire marking sleeves have a smudge-proof finish and print in black text on a white background
- PermaSleeve labels provide wire identification that combines speed, ease of use and permanence for long-lasting, high quality identification
- Cold resistant and flame-retardant with an operating temperature of -67° F to 275° F (-55° C to 135° C)
- PermaSleeve wire labels are ideal for electrical contractors, maintenance crews and industrial professionals
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Black on White
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
- For Use with Printer
- BMP®21 LAB Label Printer; BMP®21 Labeler; BMP®21 PLUS Portable Label Printer
- Manufacturer Part Number
- M21-125-C-342
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BMP21-PLUS
- Ribbon Color
- Black
- Shrink Ratio
- 3:1
- Total Qty per Pack
- 1 Roll(s) / Box
- Brady Material Number
- B-342
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (mm/cm/m)
- 3.2 mm
- Dimensions (Metric)
- 6.00 mm W x 6 mm H x 2.10 m L
- Height (in/ft/yd)
- 0.235 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.11 in
- Maximum Wire Gauge
- 16 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.17 mm
- Recovered Diameter (in/ft/yd)
- 0.125 in
- Roll Length (in/ft/yd)
- 7 ft
- Size - Length (m)
- 2.10 m
- Sleeve Size (in/ft/yd)
- 0.125 in Dia x 7 ft L
- Web Width (in/ft/yd)
- 0.235 in
- Wire Diameter Range
- 0.046 in to 0.11 in
Brand NameBrady®
DiagramIcon 5 (circle with centre dot)
FinishMatte
Label/Media FormatLabel/Media in Cartridge with Ribbon
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Printer CompatibilityBMP21-PLUS; BMP21; IDPAL
Quantity per Row1
Ribbon SeriesR4300
Tape ColorWhite
Trade NameBMP®21 PermaSleeve®
Continuous & Die-Cut Materials SupportedContinuous Tapes Only
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)0.125 in
Dimensions0.235 in H
Dimensions 20.235 in H
Height (mm/cm/m)6 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)2.79 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.046 in
Minimum Wire Gauge22 AWG
Recovered Diameter (mm/cm/m)3.18 mm
Roll Length (mm/cm/m)2.13 m
Size - Width (mm)6.00 mm
Sleeve Size (mm/cm/m)3.2 mm Dia x 2.13 m L
Web Width (mm/cm/m)5.97 mm
Wire Gauge Range22 AWG to 16 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
