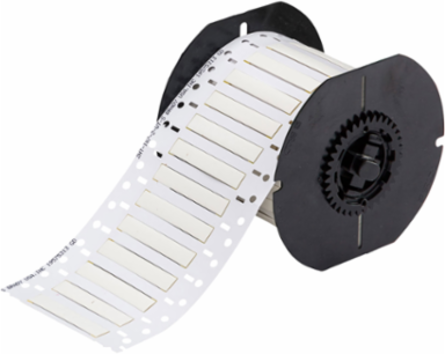

Brady B33D-187-2-7642 PermaSleeve HX Heat Shrink Wire Marking Sleeves, 0.187 Inch Dia x 2 Inch W, White
Brady B33D-187-2-7642 PermaSleeve HX Heat Shrink Wire Marking Sleeves, 0.187 Inch Dia x 2 Inch W, White
- MPN: B33D-187-2-7642
- UPC: 662820967491
- PPN: BRD-B33D-187-2-7642
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$666.87/ EA
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Enables Industry Compliance
- ASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized; VW-1
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- i3300; BBP33
- Quantity per Roll
- 450
- Recommended Ribbon
- B30-R4300
- Shrink Ratio
- 2:1
- Suggested Ribbon Series
- R4300; R6000 Halogen Free; R6400; R6600
- Total Quantity
- 450
- Brady Material Number
- B-7642
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.187 in
- Dimensions
- 0.335 in H
- Dimensions 2
- 0.335 in H
- Height (mm/cm/m)
- 8.50 mm
- Maximum Service Temperature °F
- 248 °F
- Maximum Wire Diameter (mm/cm/m)
- 3.83 mm
- Minimum Service Temperature °C
- -40 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.094 in
- Minimum Wire Gauge
- 16 AWG
- Recovered Diameter (mm/cm/m)
- 2.4 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 0.187 in Dia x 2 in W
- Sleeve Width (in/ft/yd)
- 2 in
- Vertical Repeat
- 0.625 in
- Wire Diameter Range
- 0.094 in to 0.15 in
Brand NameBrady®
DiagramIcon 14 (v)
FinishMatte
IndustryAerospace; Electrical; Voice & data communication
Manufacturer Part NumberB33D-187-2-7642
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)i3300
Quantity per Row1
Ribbon SeriesB30-R4300
Software CompatibilityBrady Workstation, LabelMark, MarkWare
Total Qty per Pack450 Sleeve(s) / Box
Trade NameBBP®33 PermaSleeve®
Label PropertiesHeat Shrink Sleeves
Material PropertiesHeat-shrinkable
SAP B-NumberB-7642
Diameter as Supplied (mm/cm/m)4.8 mm
Dimensions (Metric)50.80 mm W x 8.50 mm H
Height (in/ft/yd)0.335 in
Maximum Service Temperature °C120 °C
Maximum Wire Diameter (in/ft/yd)0.15 in
Maximum Wire Gauge10 AWG
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter (mm/cm/m)2.39 mm
Recovered Diameter (in/ft/yd)0.094 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)50.80 mm
Sleeve Size (mm/cm/m)4.8 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)50.8 mm
Web Width (mm/cm/m)89.00 mm
Wire Gauge Range16 AWG to 10 AWG
