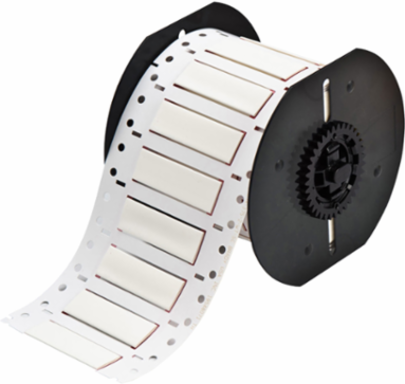

Brady B33D-375-2-7642 PermaSleeve HX Heat Shrink Wire Marking Sleeves, 0.375 Inch Dia x 2 Inch W, White

MPN: B33D-375-2-7642
UPC: 662820967514
PPN: BRD-B33D-375-2-7642
UNSPSC: 55121612

$524.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

Features

Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
Tested per ASTM E162 and ASTM E662
Operating temperature of -40°F to 248°F (-40°C to 120°C)

Documentation & Downloads

Specifications

Key Specifications

Applications	Electrical Labeling; Wire and Cable Labeling
Color	White
Enables Industry Compliance	ASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized; VW-1
For Use with Printer	BBP®33 Label Printer; BradyPrinter i3300
Label/Media Format	Roll
Primary Noun, Basic Function	Sleeve
Printable Sides	Double-Side Printable
Printer Compatibility	i3300; BBP33
Quantity per Roll	250
Recommended Ribbon	B30-R4300
Shrink Ratio	2:1
Suggested Ribbon Series	R4300; R6000 Halogen Free; R6400; R6600
Total Quantity	250
Brady Material Number	B-7642
Material	Heat-shrink Polyolefin
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)	0.375 in
Dimensions	0.645 in H
Dimensions 2	0.645 in H
Height (mm/cm/m)	16.40 mm
Maximum Service Temperature °F	248 °F
Maximum Wire Diameter (mm/cm/m)	8.13 mm
Minimum Service Temperature °C	-40 °C
Minimum Wire Diameter (in/ft/yd)	0.188 in
Minimum Wire Gauge	8 AWG
Recovered Diameter (mm/cm/m)	4.8 mm
Roll Width (mm/cm/m)	50.8 mm
Sleeve Size (in/ft/yd)	0.375 in Dia x 2 in W
Sleeve Width (in/ft/yd)	2 in
Vertical Repeat	1 in
Wire Diameter Range	0.188 in to 0.32 in

Brand Name	Brady®
Diagram	Icon 14 (v)
Finish	Matte
Industry	Aerospace; Electrical; Voice & data communication
Manufacturer Part Number	B33D-375-2-7642
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	i3300
Quantity per Row	1
Ribbon Series	B30-R4300
Software Compatibility	Brady Workstation, LabelMark, MarkWare
Total Qty per Pack	250 Sleeve(s) / Box
Trade Name	BBP®33 PermaSleeve®
Label Properties	Heat Shrink Sleeves
Material Properties	Heat-shrinkable
SAP B-Number	B-7642
Diameter as Supplied (mm/cm/m)	9.5 mm
Dimensions (Metric)	50.80 mm W x 16.40 mm H
Height (in/ft/yd)	0.645 in
Maximum Service Temperature °C	120 °C
Maximum Wire Diameter (in/ft/yd)	0.32 in
Maximum Wire Gauge	4 AWG
Minimum Service Temperature °F	-40 °F
Minimum Wire Diameter (mm/cm/m)	4.78 mm
Recovered Diameter (in/ft/yd)	0.188 in
Roll Width (in/ft/yd)	2 in
Size - Width (mm)	50.80 mm
Sleeve Size (mm/cm/m)	9.5 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)	50.8 mm
Web Width (mm/cm/m)	89.00 mm
Wire Gauge Range	8 AWG to 4 AWG

Regulatory Information

CA Prop 65 Labeled	Yes
Contains CA PROP 65 Substance	Yes Contains-Label required
Contains CA PROP 65 Warning Type	Cancer
Contains Heavy Metal(s)	Unavailable
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required

CA Prop 65 Label Warning	WARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 Substance	Yes
Contains CA Prop 65 Cancer Causing Chemical	Antimony Trioxide
DOT Regulated Product	No = not regulated by DOT
EU RoHS Compliant	Yes
