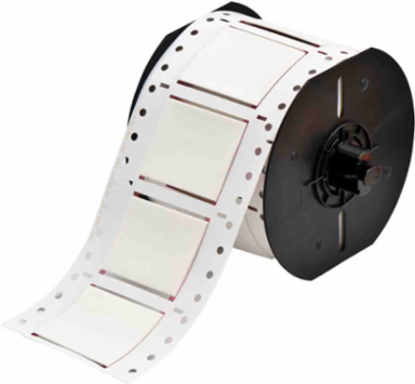

Brady B33D-1000-2-7642 PermaSleeve HX Heat Shrink Wire Marking Sleeves, 1 Inch Dia x 2 Inch W, White, Double-Side Printable
- MPN: B33D-1000-2-7642
- UPC: 662820967545
- PPN: BRD-B33D-1000-2-7642
- UNSPSC: 55121612
CAD
$633.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Industry
- Aerospace; Electrical; Voice & data communication
- Manufacturer Part Number
- B33D-1000-2-7642
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- i3300
- Quantity per Row
- 1
- Ribbon Series
- B30-R4300
- Software Compatibility
- Brady Workstation, LabelMark, MarkWare
- Total Qty per Pack
- 150 Sleeve(s) / Box
- Trade Name
- BBP®33 PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-shrinkable
- SAP B-Number
- B-7642
- Diameter as Supplied (mm/cm/m)
- 25.4 mm
- Dimensions (Metric)
- 50.80 mm W x 42.16 mm H
- Height (in/ft/yd)
- 1.66 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.95 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.5 in
- Minimum Wire Gauge
- 2 AWG
- Recovered Diameter (mm/cm/m)
- 12.7 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 1 in Dia x 2 in W
- Sleeve Width (in/ft/yd)
- 2 in
- Vertical Repeat
- 2 in
- Wire Diameter Range
- 0.5 in to 0.95 in
Brand NameBrady®
DiagramIcon 14 (v)
For Use with PrinterBBP®33 Label Printer; BradyPrinter i3300
Label/Media FormatRoll
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Printer Compatibilityi3300; BBP33
Quantity per Roll150
Recommended RibbonB30-R4300
Shrink Ratio2:1
Suggested Ribbon SeriesR4300; R6000 Halogen Free; R6400; R6600
Total Quantity150
Brady Material NumberB-7642
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)1 in
Dimensions1.66 in H
Dimensions 21.66 in H
Height (mm/cm/m)42.16 mm
Maximum Service Temperature °F248 °F
Maximum Wire Diameter (mm/cm/m)24.13 mm
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter (mm/cm/m)12.70 mm
Recovered Diameter (in/ft/yd)0.5 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)50.80 mm
Sleeve Size (mm/cm/m)25.4 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)50.8 mm
Web Width (mm/cm/m)89.00 mm
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
