Brady B33-750-2-342-2 PermaSleeve Wire Marking Sleeves, 0.75 Inch Dia x 1 Inch W, Roll of 500
Brady B33-750-2-342-2 PermaSleeve Wire Marking Sleeves, 0.75 Inch Dia x 1 Inch W, Roll of 500
- MPN: B33-750-2-342-2
- UPC: 754473948412
- PPN: BRD-B33-750-2-342-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$821.49/ EA
Description

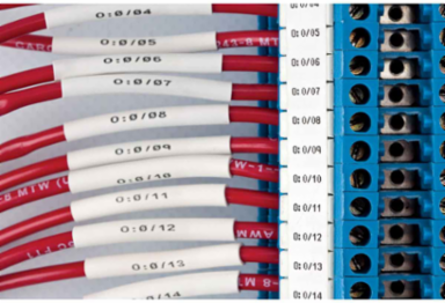

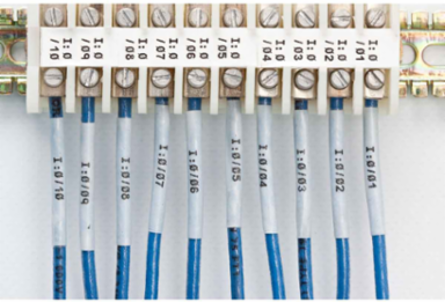

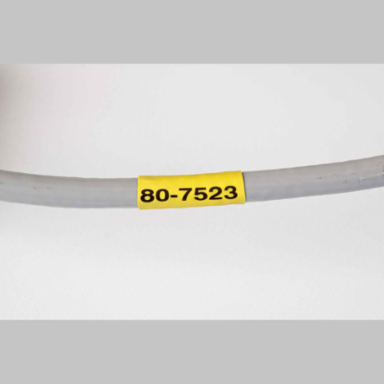

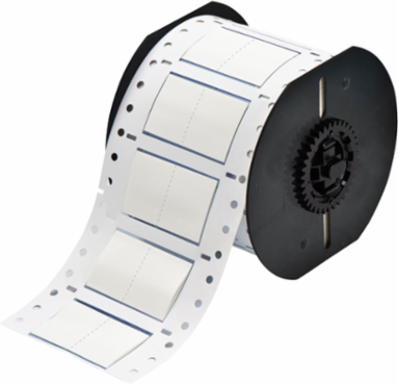

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Specifications
Specifications
- Brand Name
- Brady®
- Finish
- Matte
- Label/Media Format
- Roll
- Printable Sides
- Single-Side Printable
- Quantity per Roll
- 500
- Recommended Ribbon
- B30-R4300
- Sleeve Slits
- Yes
- Trade Name
- BBP®33 PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- Diameter as Supplied (in/ft/yd)
- 0.75 in
- Dimensions
- 1.25 in H
- Dimensions 2
- 1.25 in H
- Height (mm/cm/m)
- 31.8 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 17.8 mm
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 6.4 mm
- Recovered Diameter (mm/cm/m)
- 6.4 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (mm/cm/m)
- 19.1 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Wire Diameter Range
- 0.25 in to 0.7 in
ColorWhite
For Use with PrinterBBP®33 Label Printer; BradyPrinter i3300
Primary Noun, Basic FunctionSleeve
Printer and Label ApplicationsWire & Cable
Quantity per Row2
Shrink Ratio3:1
Total Quantity500
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
SAP B-NumberB-342
Diameter as Supplied (mm/cm/m)19.1 mm
Dimensions (Metric)31.8 mm H
Height (in/ft/yd)1.25 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.7 in
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.25 in
Recovered Diameter (in/ft/yd)0.25 in
Roll Width (in/ft/yd)2 in
Sleeve Size (in/ft/yd)0.75 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Vertical Repeat1.625 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
