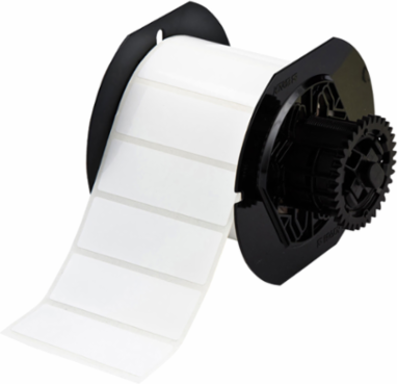

Brady B33-18-484 Permanent Polyester Labels, 1 Inch H x 3 Inch W, Glossy White, Thermal Transfer Printable
- MPN: B33-18-484
- UPC: 754473911157
- PPN: BRD-B33-18-484
- UNSPSC: 55121612
CAD
$221.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permanent Polyester (B-484) material has excellent pliability and is designed for high adhesion to textured metals, low surface energy plastics and angled or curved surfaces.
Features

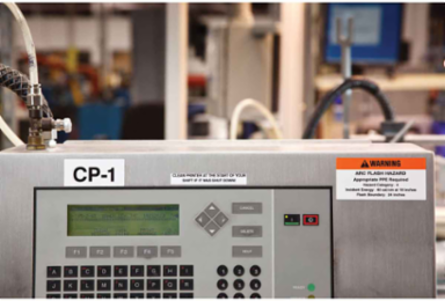

- Ideal for marking backer board, DIN rail, relays, PLCs, switches, solenoids, drive motors and other components inside panels
- Glossy white polyester with permanent rubber based adhesive is thermal transfer printable
- UL approved
- Service temperature of -40 to 248° F (-40 to 120° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; Electrical Labeling; General Identification
- Color
- White
- Diagram
- Icon 3 (triangle)
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair; Rating & Name Plates
- Printer Compatibility (Print)
- i3300
- Quantity per Row
- 1
- Ribbon Series
- B30-R6000HF
- Software
- LabelMark
- Suggested Ribbon Series
- R6000 Halogen Free
- Total Quantity
- 1500
- Adhesive Type
- Permanent Rubber Based
- Label Properties
- Aggressive Adhesive Labels; Heat Resistant Labels; Permanent Adhesive Labels
- Material Properties
- Low Profile
- Average Outdoor Durability
- 1 Year
- Dimensions (Metric)
- 76.20 mm W x 25.40 mm H
- Height (in/ft/yd)
- 1 in
- Label/Tape Size (in/ft/yd)
- 1 in H x 3 in W
- Maximum Service Temperature °F
- 248 °F
- Minimum Service Temperature °F
- -40 °F
- Size - Width (mm)
- 76.20 mm
- Thickness (mm/cm/m)
- 0.076 mm
- Vertical Repeat (mm)
- 28.60 mm
- Web Width (mm/cm/m)
- 81.28 mm
- Width (mm/cm/m)
- 76.2 mm
Brand NameBrady®
Compatible Surface TypesLow Surface Energy
FinishGloss
IndustryManufacturing; Warehouse & logistics
Manufacturer Part NumberB33-18-484
Print TechnologyThermal Transfer
Printer Compatibilityi3300; BBP33
Quantity per Roll1500
Recommended RibbonB30-R6000
ShapeRectangle
Software CompatibilityLabelmark™ Software
Total Qty per Pack1500 Label(s) / Box
Trade NameToughBond
Brady Material NumberB-484A
MaterialPolyester
SAP B-NumberB-484A
Dimensions1 in H x 3 in W
Dimensions 21 in H x 3 in W
Height (mm/cm/m)25.40 mm
Maximum Service Temperature °C120 °C
Minimum Service Temperature °C-40 °C
Sign Size-General1 in x 3 in
Thickness (in/ft/yd)0.003 in
Vertical Repeat1.125 in
Web Width (in/ft/yd)3.2 in
Width (in/ft/yd)3 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
