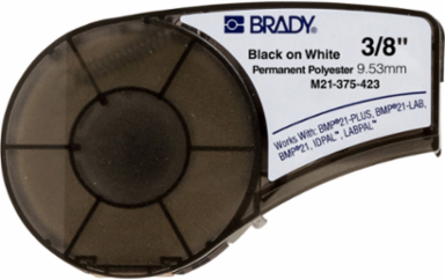

Brady M21-375-423 BMP21 Series White Polyester Labels 0.375" W x 21' L
- MPN: M21-375-423
- UPC: 662820899662
- PPN: BRD-M21-375-423
- UNSPSC: 55121612
CAD
$40.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permanent Polyester (B-423) is ideal for electronic PCB and component identification, bar code labels, rating plates and solar panel identification.
Features
- Glossy white finish with permanent acrylic is thermal transfer printable
- UL approved;CSA accepted
- Meets requirements of a halogen-free material per DIN VDE 0472 part 815
- All-in-one cartridge includes ribbon and label supply
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Barcode Labeling; Component and Equipment Labeling; Data and Telecommunications Labeling; Electrical Labeling; General Identification; Inventory and Inspection Labeling; Laboratory Labeling
- Color
- Black on White
- Diagram
- Icon 5 (circle with centre dot)
- Finish
- Gloss
- Label/Media Format
- Label/Media in Cartridge with Ribbon
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair; Rating & Name Plates
- Printer Compatibility (Print)
- BMP21-PLUS; BMP21-LAB
- Quantity per Row
- 1
- Ribbon Color
- Black
- Tape Color
- White
- Trade Name
- WorkHorse
- Adhesive Type
- Permanent Acrylic
- Continuous & Die-Cut Materials Supported
- Continuous Tapes Only
- Label Properties
- Aggressive Adhesive Labels; Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Dimensions (Metric)
- 9.53 mm W x 6.40 m L
- Maximum Service Temperature °C
- 110 °C
- Minimum Service Temperature °C
- -70 °C
- Roll Length (in/ft/yd)
- 21 ft
- Roll Width (in/ft/yd)
- 0.375 in
- Roll/Tape Size (mm/cm/m)
- 9.53 mm W x 6.4 m L
- Size - Width (mm)
- 9.53 mm
- Thickness (mm/cm/m)
- 0.076 mm
Brand NameBrady®
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
For Use with PrinterBMP®21 LAB Label Printer; BMP®21 Labeler; BMP®21 PLUS Portable Label Printer; IDPAL™ Handheld Label Maker; LABPAL™ Handheld Label Maker
Manufacturer Part NumberM21-375-423
Print TechnologyThermal Transfer
Printer CompatibilityBMP21-PLUS; BMP21-LAB; BMP21; IDPAL; LABPAL
PSPA Photoluminescence ClassNot Rated
Reflective TypeNon-Reflective
Ribbon SeriesR6200
Total Qty per Pack1 Roll(s) / Box
Adhesive (Y/N)Yes
Brady Material NumberB-423
Indoor or Outdoor UseOutdoor Use
MaterialPolyester
SAP B-NumberB-423
Label/Tape Size (in/ft/yd)0.375 in W x 21 ft L
Maximum Service Temperature °F230 °F
Minimum Service Temperature °F-94 °F
Roll Length (mm/cm/m)6.4 m
Roll Width (mm/cm/m)9.53 mm
Size - Length (m)6.40 m
Thickness (in/ft/yd)0.003 in
Vial/Tube Size0.6 ml
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
