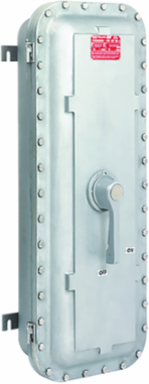

Killark B7CD Aluminum Circuit Breaker Enclosure 400A Max, 16.5 Inch Width, 34.25 Inch Height
- MPN: B7CD
- UPC: 783936016153
- PPN: HBL-B7CD
- UNSPSC: 39121601
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
B7C Series - Aluminum Circuit Breaker Enclosure - 400A Max
Features
- Copper-free, cast aluminum construction (less that 4/10 of 1%).
- High strength, lighter in weight, corrosion resistant.
- Hinged Cover is standard (left side hinge).
- More wiring room - Meets the latest NEC/CEC wire bending requirements for circuit breaker enclosures.
- Ductile Mounting Lugs - Lugs are made of ductile aluminum alloy to adjust to irregular mounting surfaces without damage to enclosure.
- Universial Mounting Pan - Sheet aluminum pan is pre-drilled to facilitate easy field installation of major circuit breaker brands.
- Provision for grounding supplied as standard.
- Conduit Openings Supplied - Standard conduit openings include power conduit top and bottom and a plugged opening suitable for field installation of drain and breather.
- Special conduit openings can be supplied at factory, or can be field installed.
- Breaker Handle - Provisions for lock "ON" or "OFF" positions with up to three padlocks. Spring loaded to prevent damage of breaker toggle and provides positive handle alignment. O-ring on shaft to prevent water seeping into enclosure.
- Recessed Flange Notches - Flanges are notched to allow for easier cover opening with prying instrument without flange damage.
- Gasketed Flange - Nitrille (BUNA-N) O-ring gasket is located inside cover bolt circle to prevent water seeping into enclosure.
- Quick Release, Captivated Cover - Bolts of 316 Grade Stanless Steel Triple lead bolts require only 3 1/2 turns to disengage.
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
Specifications
Key Specifications
- Country of Origin
- United States
- Depth
- 11.5 in
- Operating Temperature Celcius Max
- 40 Degree
- Application
- Locations such as petroleum refineries, chemical and petroleum plants with indoor and outdoor processes. Motor control and circuit protection in locations made hazardous due to the presence of flammable gases or vapors, combustible dust, or easily ignitable fiber and flyings, and areas which are subject to corresion, weather, and dampness.
- Frequency Rating
- 60 Hz
- Mounting
- Wall
- Type
- Circuit Breaker Enclosure
- Weight
- 155 lb.
- Enclosure Type
- Bolted
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- ENCL,CIRCUIT BREAKER 400A CLI
- Harmonization Code
- 7616995190
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D251
- Gross Weight with Packaging
- 160
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936016153
- NAICS Code
- 3353137105
ColorAluminum
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ActuatorMolded Case Circuit Breaker Operator
EnclosureBolted
Height34.25 in
Special FeaturesSuitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
Width16.5 in
Engineering Drawing 1 Display TextB7CD Engineering Drawing
Finish TypeLacquer
Nema Rating3, 4, 4X, 7(B, C, D), 9(E, F, G)
Class CodeD25
Freight Class Code06316011
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE83969
SeriesB7C Series
BOX SIZE(in)
Master Pack DescriptionEach
