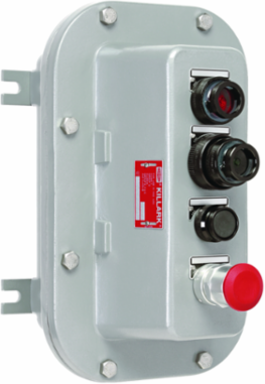

Killark B7EQ Junction Box, 4.25 X 9.18 X 6.31 Inch, Class I, II, III, Copper-Free Cast Aluminum, NEMA 4X
- MPN: B7EQ
- UPC: 783936020334
- PPN: HBL-B7EQ
- UNSPSC: 39121314
CAD
$2210.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
B7E Series, 4.25 X 9.18 X 6.31, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Bolted Enclosure
Features
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Cover bolts of 316 grade stainless steel for maximum protection from corrosion.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard for a Type 4X rating.
- Mounting lugs are bolt on, made from ductile aluminum alloy.
- Conduit and device openings factory or field installed.
- Copper-free cast aluminum construction - high strength, lighter in weight, and corrosion resistant. Quick release, captivated cover bolts of 316 grade stainless steel - triple-lead bolts require only 3-1/2 turns to disengage. Stainless steel (316 grade) f
Specifications
Key Specifications
| NEMA Rating | 3, 4, 4X |
|---|---|
| ARRA Compliant | Contact Manufacturer |
| Color | Gray |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Cover Type | Bolted |
| Type | Junction Box |
| Description - Invoice | ENCL, PRISM 4.25 X 9.18 |
| Harmonization Code | 7616999999 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D252 |
| Gross Weight with Packaging | 23.2 |
| Series | B7E Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Special Features | Copper-free cast aluminum construction - high strength, lighter in weight, and corrosion resistant. Quick release, captivated cover bolts of 316 grade stainless steel - triple-lead bolts require only 3-1/2 turns to disengage. Stainless steel (316 grade) f |
|---|---|
| Country of Origin | Canada |
| Width | 10.000 in |
| Application | Locations made hazardous due to the presence of flammable gases or vapors, combustible dust, or easily ignitable fibers and flyings, and areas which are subject to corrosion, weather, and dampness. Petroleum refineries, chemical and petrochemical plants w |
| Nema Rating | 3, 4, 4X |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11716 |
| Material | Copper-free aluminum |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936020334 |
| NAICS Code | 3359326103 |
