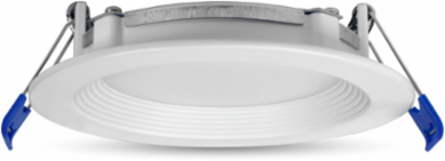

Leviton DBR40-S1W Baffle Slim Downlight with Selectable CCT, 4-inch Round Aperture
- MPN: DBR40-S1W
- UPC: 078477014561
- PPN: LEV-DBR40-S1W
CAD
$36.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Leviton’s 4-inch round aperture Baffle Slim Downlight, with selectable color temperature, offers the performance, ease of use and flexibility valued for today’s residential and light commercial applications. The regressed baffle and edge-lit lens combine to create a more refined ceiling appearance and enhanced visual comfort. Users can change the color temperature of the light between 5 different values ranging from 2700K to 5000K with a simple switch. Pair this downlight with one of the many Leviton compatible dimmer control options to adjust for the desired light level. A total lighting solution that will provide years of quality illumination and reliable performance. Compatible with the following Leviton Dimmers: SureSlide: 6674N, 6674, 66DF IllumaTech: IPL06, IPE04 Decora Slide with Lever Edge: ESL01 Decora Slide: DSL06, DSE06, DSM10 Decora Digital: DDM06 Decora Smart Wi-Fi: D26HD, D2ELV, D2MSD Decora Smart Z-Wave: ZW6HD Decora Evolve: VM2D3, VMDD3 Toggle Slide: TSL06, TSM10 Trimatron Rotary: RDL06, RNL06
Features
- Direct mount downlighting solution; no existing housing or junction box required
- 4-inch Round Aperture delivers 820 Lumens at 10W
- Regressed Lens with Baffle for less glare and improved visual comfort

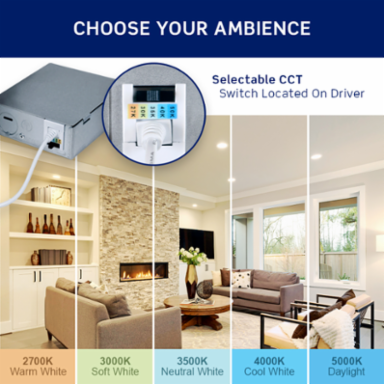

- Field selectable Color Temperature (2700K to 5000K)
- Light Engine consists of 90+ CRI LEDs with color accuracy within 4 SDCM
- 50,000 Hours @ 70% Lumen Maintenance
- IC-rated Die Cast Aluminum Housing
- Diffuse Polycarbonate Lens with edge-lit Optical System
- Closed-cell Gasket included for use in Wet Location and Air-tight installations
- 120VAC Forward- and Reverse-Phase Dimming
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- Energy Rating
- ENERGY STAR Compliant
- Listing
- cETLus Listed, Suitable for Wet Locations|Air-tight certified in accordance with ASTM E283 (2012)
HousingInsulated Ceiling (IC) Rated
Title 24 CompliantYes
Material Specifications
- Color
- Matte White
MaterialDie-cast Aluminum Trim|Polycarbonate Lens|Formed Galvanized Steel
Product Features
- Color Rendering Index
- 90+
- Dimming Technology
- Suitable for compatible Forward- and Reverse-Phase Dimmers, Dimmable from 100% - 10%
- Input Voltage
- 120VAC, 50/60Hz
- Product Aperture Size
- 4 Inch Round
Correlated Color TemperatureSelectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
Input Power10W
Lumen Output820Lm
RatingMeets Class A Sound Rating
Warranty
- Warranty
- 5 Years
Environmental Specifications
- Listing
- Suitable for Wet Locations
Operating Temperature-20°C (-4°F) to 40°C (104°F)
